This is Hexacopter Frame which employs 6 arms to get into the air. There are several advantages of a hexacopter frame over a quadcopter one, justifying the extra price tag.
For 6 arms, of course, there are more motors with a hexacopter meaning more power, meaning bigger batteries. This increase in batteries leads to an increase in flight time, which is also nice. Due to these extra motors, a hexacopter is also more stable than your quadcopter equivalent.
Another great advantage of using hexacopters is if for any reason your quadcopter loses a motor, it goes down but with a hexacopter, on the other hand, in the majority of cases you will be able to land safely with one or maybe even two motors down; an extra inbuilt guarantee on your beloved copter.
The S500 has strong, light, and have a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESC‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The S550 Hexacopter Frame is a highly flexible frame during the mounting of various components like flight controller, battery, etc.
The S550 hexacopter frame kit is an excellent strong lightweight Hexacopter frame with carbon fiber landing gear and a bonus built-in the printed circuit board (PCB) for neat and easy wiring. It comes with an integrated PCB for neat and easy wiring. The added lift capacity of a hex configuration makes this frame for carrying larger payloads such as camera systems and other electronic components. This makes for an exceptional camera rig or simply a very agile and powerful multi-rotor frame for aerobatics.
It comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient.
The assembly of this frame is super simple with pre-threaded sleeves for all the frame bolts so no lock-nuts are required. The motor mounts are ready to take a selection of motors with mounting hole centres of 16, 19 and 25 mm once again making this a very universal frame at a very affordable price.
The frame has the wheelbase of 550mm and the whole frame kit weighs around 760gm. It features mounting tabs at the front and rear end on the bottom plate of the mainframe for mounting cameras and other accessories.
We are offering a full line of multi-rotor accessories,
ESC’s (Electronic Speed Controller)
Orange Li-PO Batteries
Explore more variety of multirotor accessories by clicking Drone parts
You can also check our following Multirotor Kits category if you are a beginner or just not willing to send lot much of time in selecting appropriate parts for your quadcopter and want your quad in the air as soon as possible,
- Made by advanced engineering material, super strong & smooth
- Easy to assemble and disassemble.
- The frame is tough and durable.
- The main glass fiber frame has good strength.
- The arm equips support ridges for better and faster forward flight.
- Features pre-threaded brass sleeves.
- Large mounting tabs for camera mounting.
- PCB for easy and neat wiring
- Easy assembly

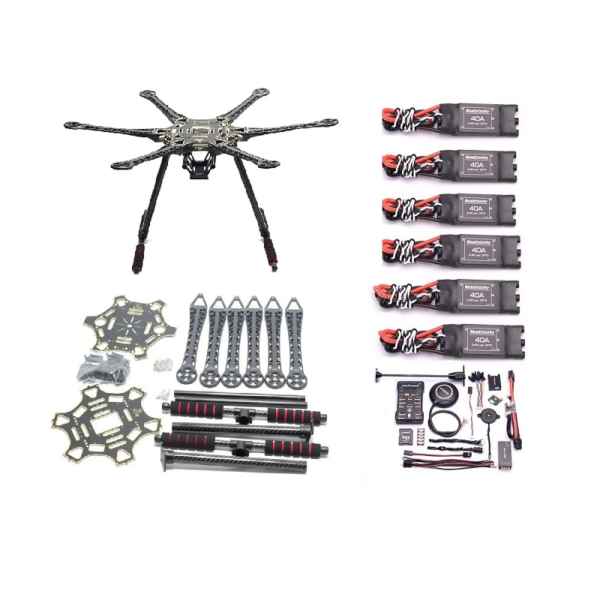

1 x S550 Hexacopter Frame
3 x 2212 920KV Brushless DC Motor with Black Cap (CW)
3 x 2212 920KV Brushless DC Motor with Silver Cap (CCW)
3 x 1045(10X4.5) ABS DJI Black 1CW+1CCW-(1pair)
6 x ReadytoSky 40A Opto ESCs
1 x Pixhawk 2.4.8 Flight Controller1
1 x Pixhawk I2C Port Expand Board with Cable with casing
1 x Mini OSD for Pixhawk Flight Controller with Cable
1 x Pixhawk PPM Encoder Module with cable
1 x Ublox NEO-M8N GPS Module with Compass
1 x 4 GB MicroSD Card with Adapter
1 x GPS Module mounting stand
1 x LiPo Battery Voltage Checker 1S-8S with Buzzer
1 x Antivibration shock absorber for Pixhawk FC
1 x Pixhawk Power Module with XT60 connector
1 x 30cm Lipo Battery Strap Belt Reusable Cable Tie Wrap
You can make your own combo, buying the above product individually. Click the product name and add to cart.￼
More Recommended Products for this kit is below, (Not Included)
- Orange HD Propellers 1045(10X4.5) Carbon Fiber Black 1CW+1CCW-1pair
- Orange HD Propellers 1147(11X4.7) Carbon Fiber Black 1CW+1CCW-1pair
- Orange HD Propellers 1245(12X4.5) Carbon Fiber Black 1CW+1CCW-1pair
- Orange HD Propellers 1347(13X4.7) Carbon Nylon Black 1CW+1CCW-1pair
- Orange 8000mAh 3S 30C/60C Lithium polymer battery Pack (LiPo)￼
- Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo)
- Flysky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver
- FS-TH9X 2.4GHz 9CH Upgrade Transmitter with FS-IA10B Receiver
- For FPV cameras and other accessories explore the multirotor accessories category at Drone parts
