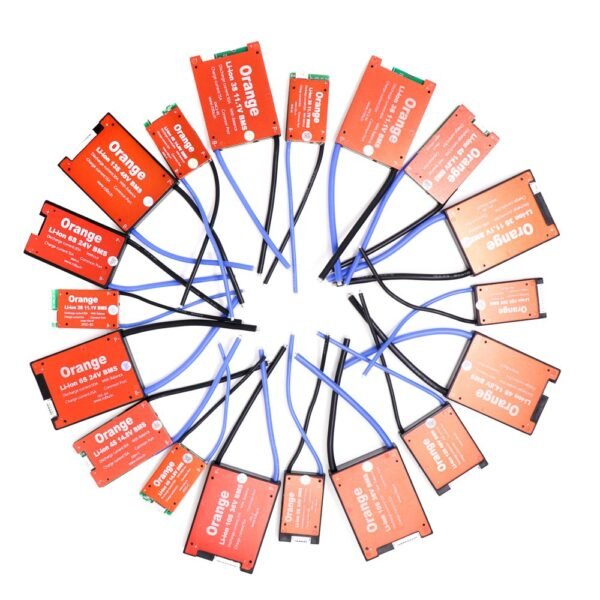

Orange li-ion 10S 36V 50A Battery Management System


  1. Charge voltage:42V
  2. Charge current:25 A
  3. Continuous discharge current:50 A
  4. Balance Detect Voltage:4.18 V
  5. Balance Current:30±5 mA
SKU: RK001508 Categories: ,


Orange 10S 36V 50A Battery Management System Circuit(without Casing) is a 10 Cell in Series 36V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.

Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.



  1. State of charge calculations.
  2. Cell over-voltage and under-voltage protection.
  3. Intelligent battery balancing (passive).
  4. Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
  5. Serial connection protection for 10s cells, so you can use Orange BMS for lower voltage only change the wire connection ways, it makes you more conveniently and flexibly to use this BMS.

Package Includes:

1 x Orange 10S 36V 50A Battery Management System
