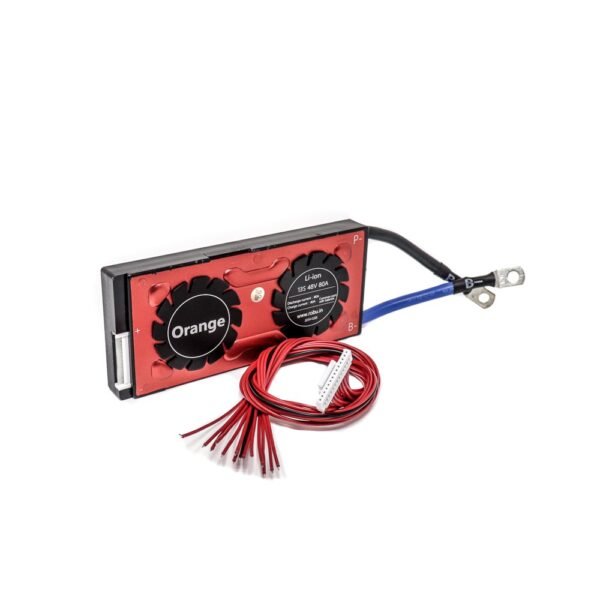

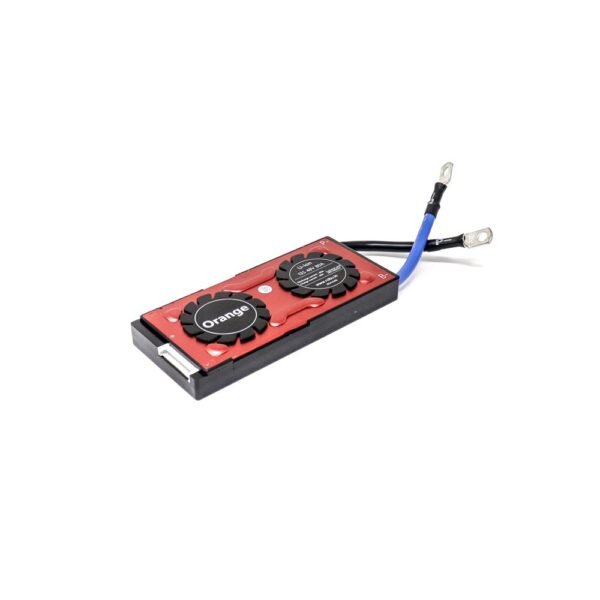

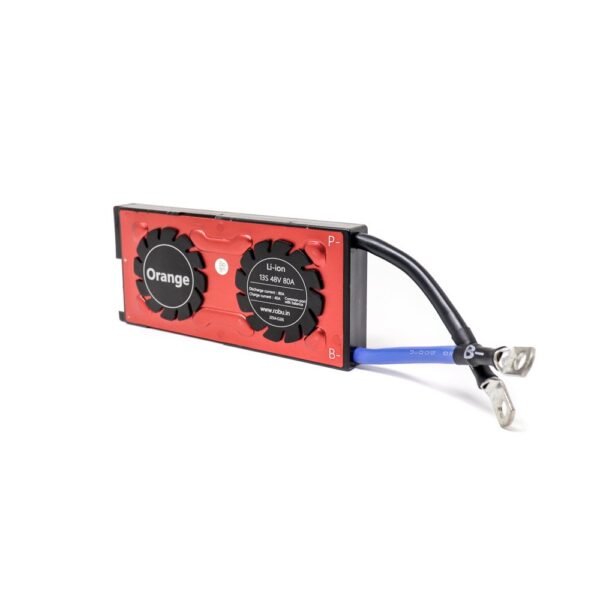

Orange li-ion 13S 48V 80A Battery Management System

Description

Orange 13S 48V 80A Battery Management System Circuit is a 13 Cell in Series 48V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.

Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.

Features:

1. Use foreign premium IC in class A protection.
2. Professional high current wiring design & workmanship thus can withstand the shock of high current.
3. Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
4. Extremely low quiescent power consumption, all of the power loss can not reach more than 30 u.
5. Complete overcharge, over-discharge, over the current, short circuit, and equalization.

Package Includes:

1 x Orange 13S 48V 80A Battery Management System
