Orange OT5320M 7.4V 180° Copper Metal Gear Digital Servo Motor


  1. Input Voltage Range (VDC):  4V-8.4V
  2. Rated Torque: @ 7.4V
  3. Gears Type: Copper Metal
  4. Connector: JR
  5. Command Signal: PWM
  6. Size (L x W x H) mm: 55 x 20 x 43


We are imported and selling a diverse range of servo motors from various manufacturers for a long time and with tolerable feedback on it, we have come to know the issues faced by our customers regarding quality and efficiency. Owing to the responses of them we compelled to find the servo motor having good quality not only from outside but also from inner gear construction. So here we are launching our Own Orange Premium Quality servo motor series with Metal gears construction where we can assure you that you will receive the best quality of motor that you are paying for with a 1-month of robust warranty.

We got constructed and tested this Orange Premium Servo with Steel gear material inside gears and a tight sturdy plastic case which makes them water and dust resistant which is a very must feature required in Boats, and RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.

The Orange OT5320M 7.4V 180° Copper Metal Gear Digital Servo Motor works with any servo code, library, and hardware. It rotates approximately 120-degree, 60 degrees in each direction. This motor package comes with a selection of hardware and arms.

Wire Description:

  • RED – Positive
  • Brown – Negative
  • Orange – Signal


Please go through Datasheet in the attachments for more technical details and Dimensional Drawing

Explore the range of Orange Premium Servo Motors in the category. Click Here


  1. Copper Gears Construction
  2. The connection cable is thicker
  3. Equips high-quality motor
  4. High resolution
  5. Fast control response
  6. Constant torque throughout the servo travel range
  7.  Excellent holding power

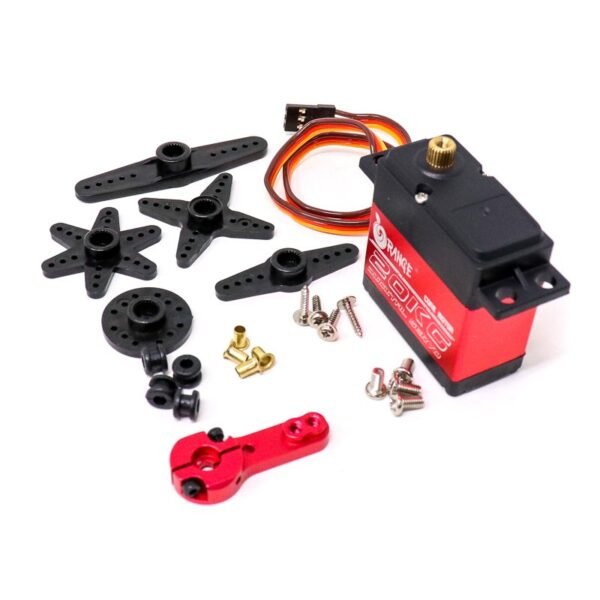

Package Includes:

1 x Orange OT5320M Copper Gear Digital Servo Motor

1 x Set of Horns

    • Two Arm Small (D: 38mm)
    • Two Arm Big (D: 55mm)
    • Four Arm (D:36.50mm)
    • Six Arm (D: 31.5mm)
    • Round Horn (D: 20.8)

1 x 25T Aluminum Servo Horn Arm

1 x Set of Screws

1 x Other fitting Accessories set
