DFRobot Gravity: PM2.5 Air Quality Sensor

Description

DFrobot offers an advanced level of sensors at an affordable cost than any other competitor brand in the market, making them ideal for the one who wants to start some Projects through Different types of sensors.

After finding Different types of sensors on market, we at robotools.in have determined that DFrobot is one of the good brands that offer a wide range of sensors at an Appropriate price.

As the most basic part of life, the air is attracting more and more attention, for example, the most common PM2.5, PM1.0, PM10, etc. Keeping an eye on the quality of the air we breathe is becoming quite important.

DFRobot brings you this Air Quality Sensor that can measure particulate matter like PM2.5, PM1.0, PM10. With an easy-to-use Gravity interface, the air quality sensor works well with most main controllers. And we provide you with relevant sample codes to help you quickly build up air quality monitoring projects. Based on the principle of laser scattering, the PM2.5 air quality sensor employs a digital universal particle sensor that can continuously collect and calculate the number of suspended particles of different sizes in the air per unit volume, which is particle concentration distribution, and then convert to concentration and output via the I2C interface. The sensor can be embedded in various instruments and meters or environmental improvement equipment related to the concentration of suspended particulate matter in the air to provide timely and accurate concentration data. It is typically suitable for smoking rooms, kitchens, hot springs, bathrooms, and other environments.

So, after reading about this sensor you might have some questions stuck in your mind that,

How does this Sensor work?

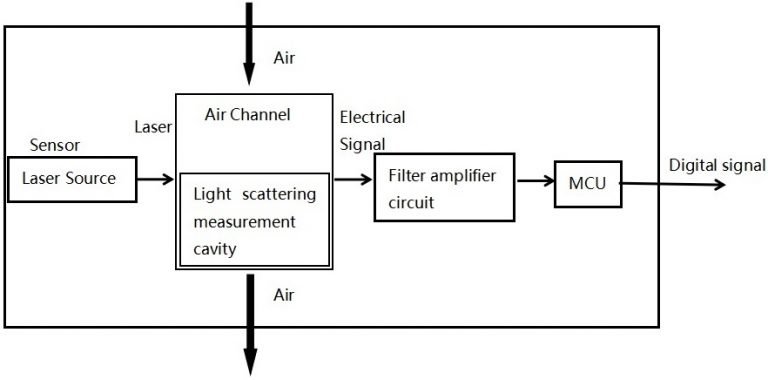

Well, This sensor works on the principle of laser scattering, which entails irradiating suspended particles in the air with a laser to cause scattering, collecting the scattered light at a specific angle, and calculating the intensity of the scattered light over time. Furthermore, the microprocessor calculates the equivalent particle size of the particles and the number of particles of various particle sizes per unit volume using the MIE theory algorithm.

Features:

1. Laser scattering principle, accurate measurement
2. Zero false alarm rate
3. Real-time response and support continuous acquisition
4. Minimum recognizable particle size 0.3µm
5. Six-sided all-around shielding, stronger anti-interference
6. Ultra-thin design, only 12mm, suitable for portable devices

Useful Links:

Please visit the DFrobot wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Package Includes:

1 x Gravity: PM2.5 Air Quality Sensor

1 x Gravity-4P I2C/UART Sensor Cable
