Description

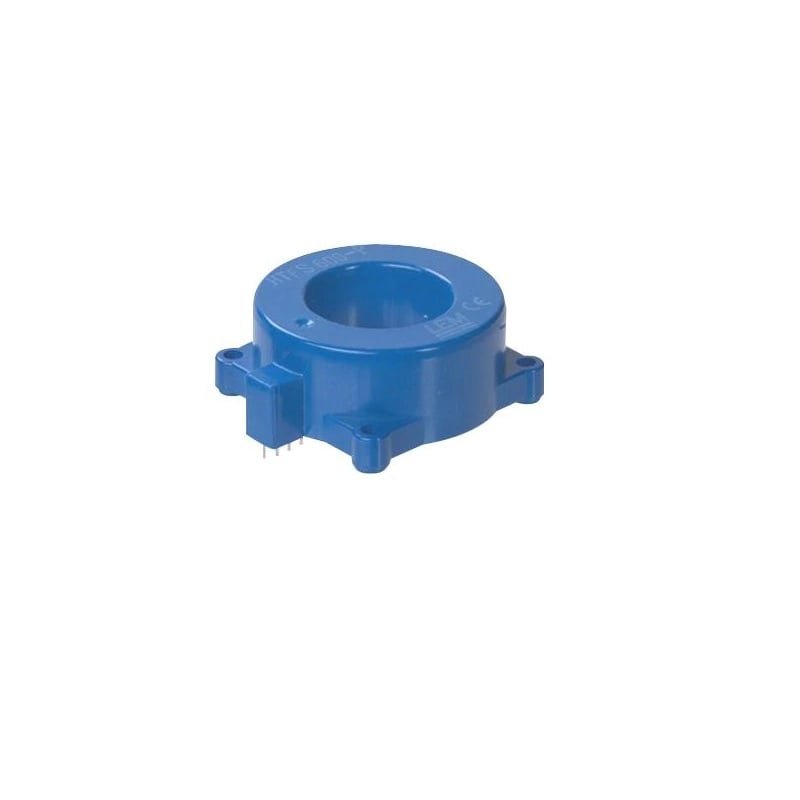

The LEM Current Transducer HTFS Series PCB 200A -300A to 300A 1 % Voltage Output 5 Vdc M3 is a Current Transducer for the electronic measurement of DC, AC, pulsed, mixed with galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). Hall effect measuring principle. Low power consumption. The isolated plastic case is recognized according to UL94V-0. High immunity to external interference.
Applications:
Automotive, Motor Drive & Control, Power Management, Test & Measurement, Maintenance & Repair, Industrial
Warnings:
Risk of electrical shock, when operating the transducer, certain parts of the module can carry hazardous voltage. Ignoring this warning can lead to injury and/or cause serious damage.
Features:
- Galvanic isolation between primary and secondary circuit
- +5V Single power supply
- Ratiometric offset
- Fixation by M3 nuts and screws
- Small size and space-saving
- Only one design for a wide current rating range
- VREF IN/OUT
Specifications:
- Sensor Output Voltage
- Response Time 7μs
- Current Measuring Range AC -300A to 300A
- Supply Voltage DC Max 5.25VProduct Range HTFS Series
- Supply Voltage DC Min 4.75
- Accuracy % 1%
- Current Measuring Range DC -300A to 300A
Package Includes:
1 x LEM Current Transducer HTFS Series PCB 200A -300A to 300A 1 %
