Pixhawk PX4 2.4.7 32Bits Flight Controller for Quadcopter Multicopter

Description

Are you want to be an Electronic Geek in the future and want to build your own drone then this Flight controller is best for you. The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESCs), which translate this desired speed into a signal that the motors can understand.

Pixhawk PX4 2.4.7  32Bits Flight Controller for Quadcopter Multicopter board is a new Version Redeveloped and optimized circuit without changing components integrated with PX4FMU+PX4IO. Pixhawk is with a new 32-bit chip and sensor technology. It detects and configures all its peripherals automatically The benefits of the Pixhawk system include a Unix/Linux-like programming environment, and completely new autopilot functions. Sophisticated scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes.

It’s an Advanced 32-bit CortexM4 ARM high-performance processor, that can run RTOS NuttX real-time operating system. Integrated backup power supply and failure backup controller. The main controller can be safely switched to backup control. It can Provide redundant power input and fault transfer functions.

US interface UART, I2C, SPI, CAN Provide automatic and manual mode.14 x  PWM/ actuator output. Color LED lamp. Multi-tone buzzer interface.Micro SD to record flight data

Options:

1. PPM encoder for RC receivers that do not provide PPM output
2. External USB and LED module for convenient status indicator and micro-USB port on your vehicle
3. Digital airspeed sensor for fixed-wing aircraft
4. Telemetry radios with one-mile range for two-way control, telemetry, and data logging via free mobile apps or PC/Mac/Linux ground station
5. u-blox GPS with compass (required for autonomous flight)

Softwares :

Official MissionPlanner, ECLIPSE firmware

Features :

Processor :

1. 32bit STM32F427 Cortex M4 core with FPU
2. 168 MHz
3. 256 KB RAM
4. 2 MB Flash
5. The 32-bit STM32F103 failsafe co-processor

Sensors:

1. ST Micro L3GD20H 16 bit gyroscope
2. ST Micro 3CLDW 303H 14 bit accelerometer/magnetometer
3. Invensense MPU 6000 3-axis accelerometer/gyroscope
4. MEAS MS5611 barometer

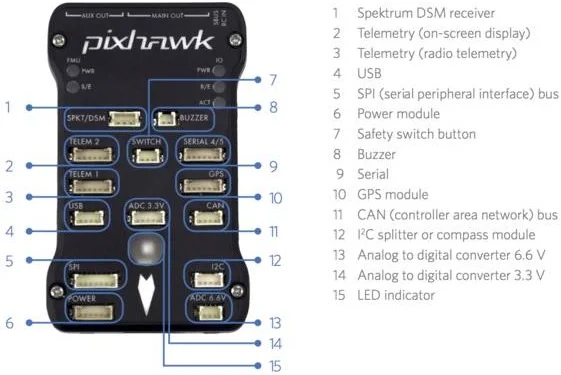

Interfaces:

1. 5x UART (serial ports), one high-power capable, 2x with HW flow control
2. 2x CAN (one with an internal 3.3V transceiver, one on expansion connector)
3. Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
4. Futaba S.BUS® compatible input and output
5. PPM sum signal input
6. RSSI (PWM or voltage) input
7. I2C
8. SPI
9. 3.3 and 6.6V ADC inputs
10. The internal micro USB port and external micro USB port extension

Power System and Protection :

1. Ideal diode controller with automatic failover
2. Servo rail high-power (max. 10V) and high-current (10A+) ready
3. All peripheral outputs over-current protected, all inputs ESD protected

Highlights:

1. New Version Redeveloped and optimized circuit without changing components
2. 168 MHz / 252 MIPS Cortex-M4F
3. 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliaries, high-power compatible)
4. Abundant connectivity options for additional peripherals (UART, I2C, CAN)
5. Integrated backup system for in-flight recovery and manual override with a dedicated processor and stand-alone power supply (fixed-wing use)
6. The backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed-wing use)
7. Redundant power supply inputs and automatic failover
8. External safety switch
9. Multicolor LED main visual indicator
10. High-power, multi-tone piezo audio indicator
11. MicroSD card for high-rate logging over extended periods of time

Package Includes:

1 x Pixhawk V2.4.7 Flight board with Original Shell
1 x Teflon safety switch
1 x Buzzer
