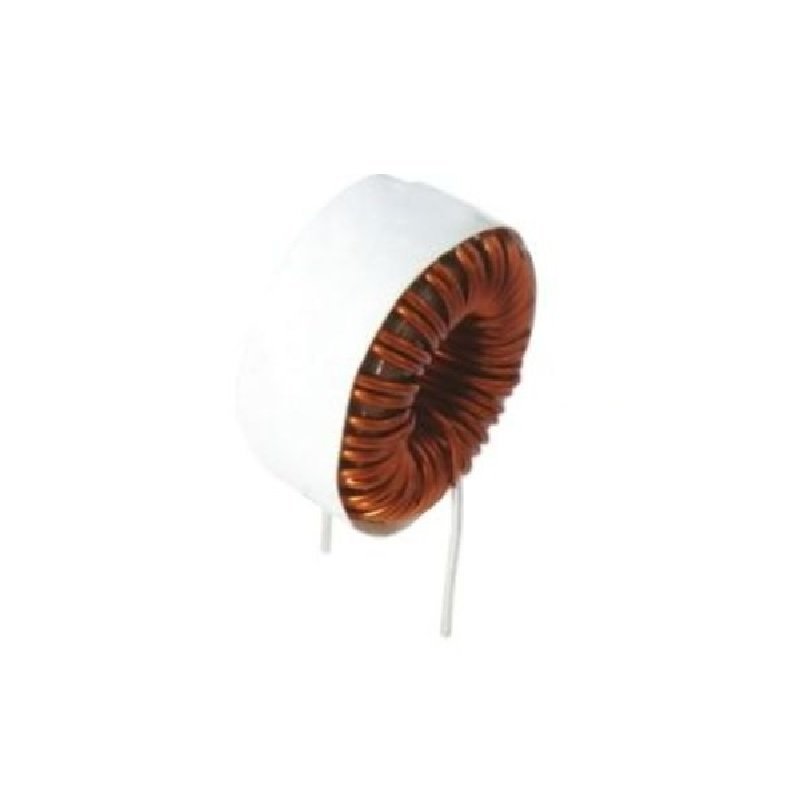

2319-V-RC High Current Radial, Leaded Inductor

Description

2319-V-RC High Current Radial DIP Inductor is a passive electronic device widely used in electronic circuits. It is an insulated coil that is a wire wound on a ring-shaped form that is made of different materials, such as powdered iron, ferrite, or another material.

A toroidal inductor is mostly used where large inductance is required. Toroidal inductors have more inductance per turn and can carry more current than solenoids with a core of similar material and size.

Applications:

1. Input/output of DC/DC converters
2. Industrial electronics
3. Power supplies for:
4. Portable communications equipment
5. Camcorders
6. LCD TVs

Specifications:

1. Series: 300
2. Part Number: 2319-V-RC
3. Inductance: 390 μH
4. Mounting Type: Radial
5. Maximum DC Resistance: 72 mΩ
6. Maximum DC Current: 5 A
7. Tolerance: ±15%
8. Lead Diameter: 1.0668 mm
9. Lead Pitch: 14.224 mm
10. Minimum Operating Temperature: -55°C
11. Maximum Operating Temperature: +105°C
12. Dimensions: 32.512 (Dia.) x 16.51 mm

Packages Includes:

1 x 2319-V-RC High Current Radial, Leaded Inductor
