Waveshare PCIe TO 4-Ch SATA 3.0 Expander, 6Gpbs High-speed SATA Interface

Description

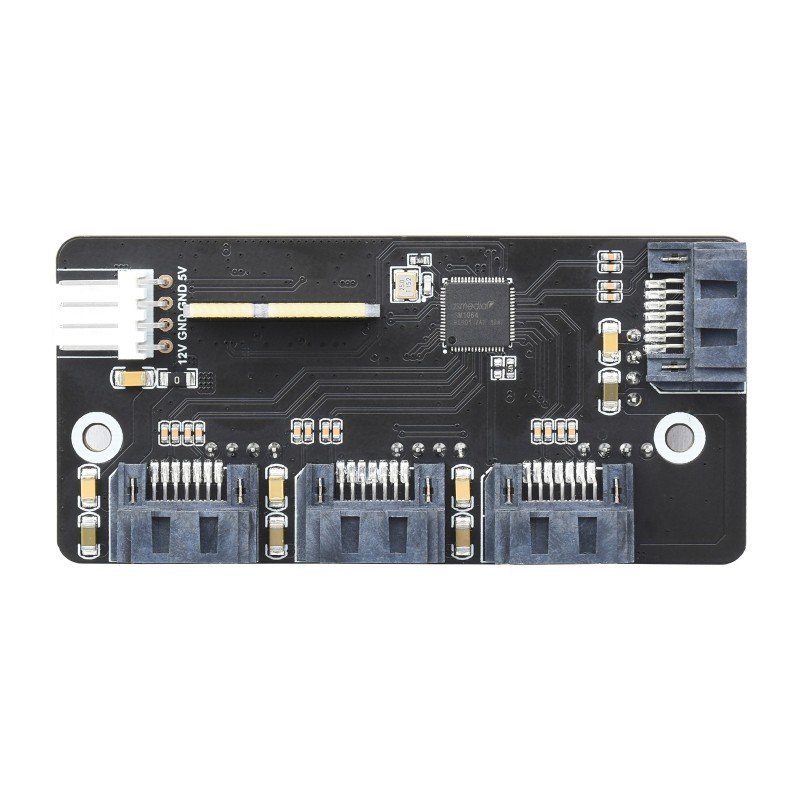

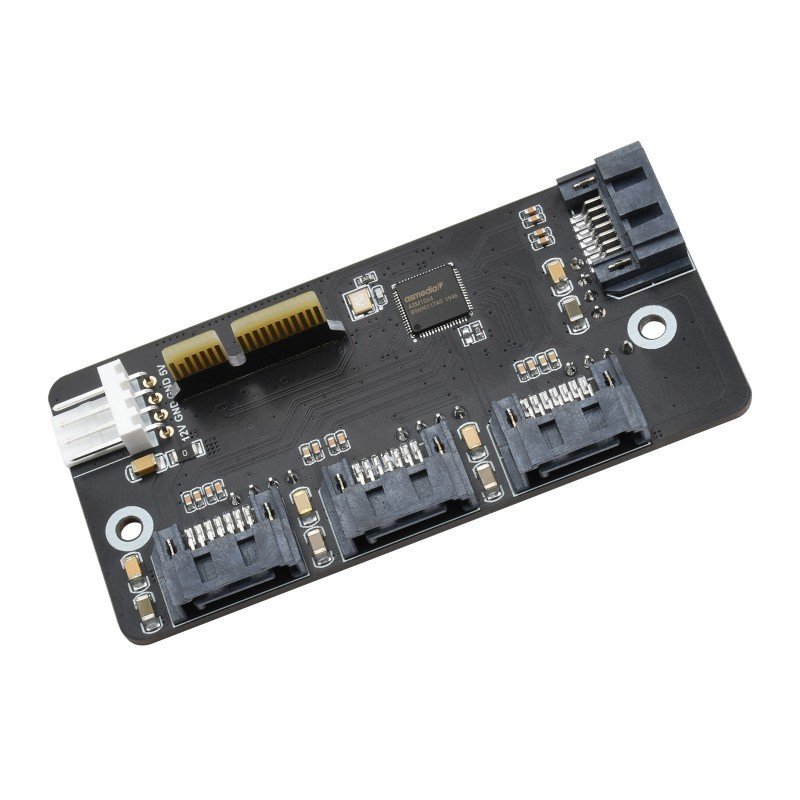

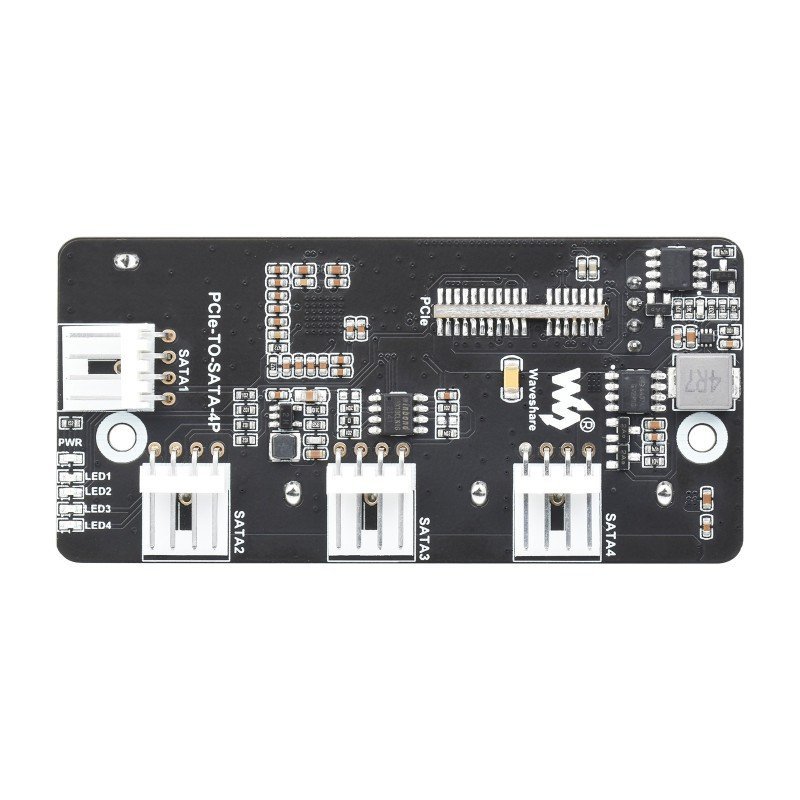

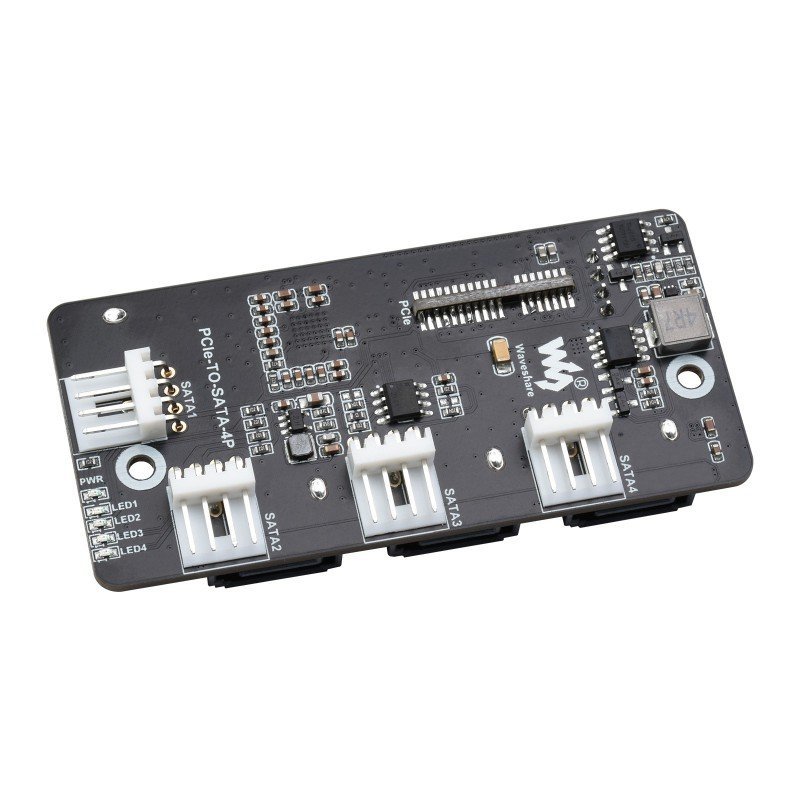

PCIe TO 4-Ch SATA 3.0 Expander, 6Gpbs High-Speed SATA Interface, Supports CM4 .Onboard SATA host controller (AHCI) with upstream PCle Gen3 x1 and downstream four SATA Gen3 ports. It’s a low latency, low cost and low power AHCI controller. With four SATA ports and cascaded port multipliers, it can enable users to build up various high-speed IO systems, including server, high-capacity system storage or surveillance platforms

Specification:

1. Support single channel PCI Express
2. L0s/L1/L23/L3 four power-saving states are supported
3. Support L1 sub-state deep power saving mode
4. Support SRIS、AER、LTR
5. Support SATA LED
6. Support full-speed command queue (NCQ) and AHCI SPEC 1.4
7. Four SATA3.0 (6Gbps) ports
8. Supports the exchange of port multiplier commands based on
9. SATA partial/sleep power management status is supported.
10. Direct access to PC motherboard is not supported.
11. 5V and 12V SATA hard drives (2.5-inch and 3.5-inch hard drives) are supported.

Package include:

1 X PCIe-TO-SATA-4P

4 X SATA Adapter Cable

1 X Screws pack
