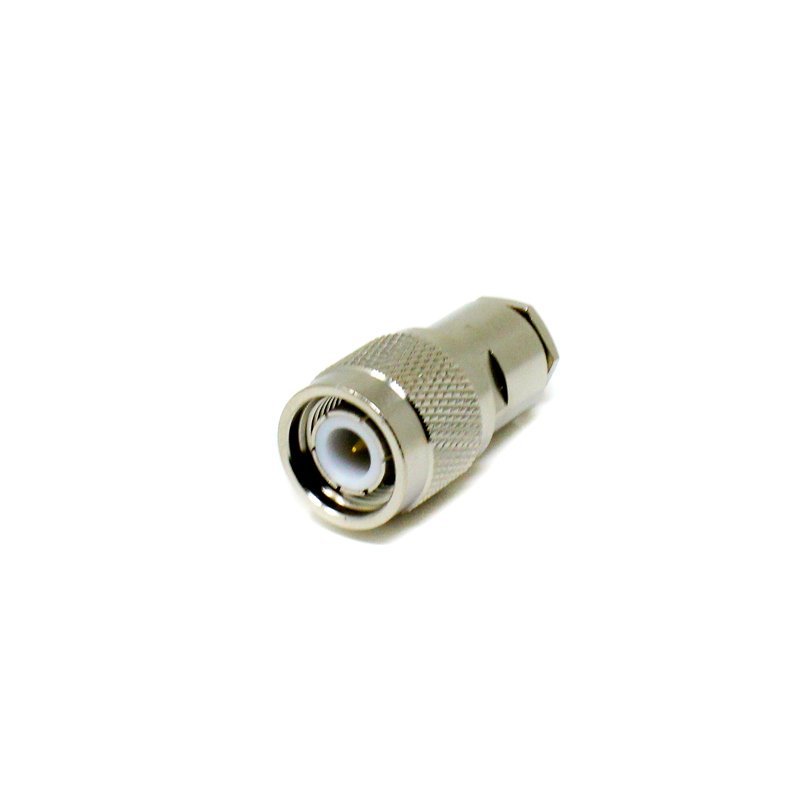

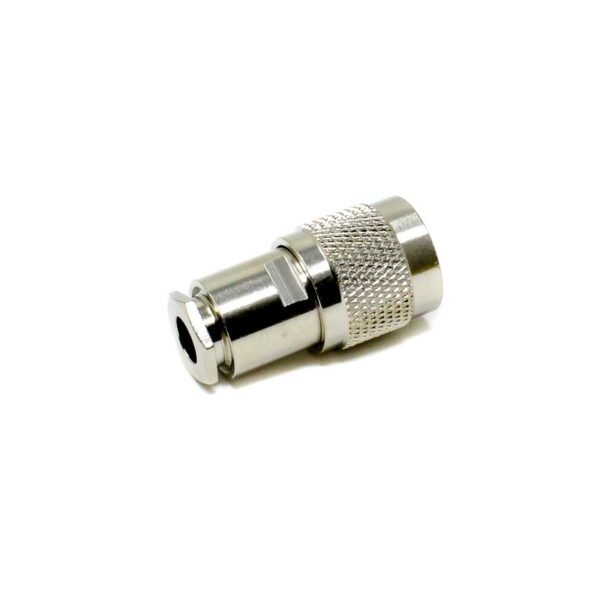

TNC Plug Straight Screw Terminal for Cable

Description

We offers, a full range of cable mount as well as PCB mount RF connectors. These connectors are designed to match industry-standard 50 ohm and 75-ohm cables with longer life.  This connector is a miniature quick connect/disconnect radio frequency connector used for wide range of applications like GPS and Network connectivity applications.

A wide range of standard connectors is listed in the category. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs  Click Here



Application :

1. Wireless Base Station
2. Microwave Components,
3. Radar System
4. Networks, Antenna Mounts
5. Machine to machine communications
6. Security Devices
7. Measuring Instruments etc.

---

Features and Specifications:

Features:

1. Plug,TNC,Male,Straight,RG58,Screw Terminal,for Cable,50ohm,75ohm,Brass,Nickel;
2. Thread Version of BNC used in Vibration-Intense application with high durability;
3. Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50-ohm impedance;
4. High Quality made according to MIL-C-39012 standard.

Specifications:

Electrical Characteristics

1. Impedance：50 ohm
2. Frequency Range: 0~11 GHz for 50 ohm
3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
4. Dielectric Withstanding Voltage: 1500 V rms
5. Working Voltage: 500 V rms
6. Center Contact Resistance ≦ 3.0 mΩ (Milliohms max.)
7. Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
8. Insultation Resistance ≧5 × 10 ³ mΩ (Milliohms min.)

Mechanical Characteristics

1. Coupling: 7/16-28 thread
2. Contact Retention: 6 lbs min.
3. Mating Durability: ≧500 cycles

Environmental Characteristics

1. Environmental Characteristics:  -65oC~+145oC
2. Coupling Nut Retention: 100 lbs. min.
3. Vibration: MIL-STD-202 Meth. 204
4. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

---

Package Includes:

1 x TNC Plug Straight Screw Terminal for Cable
