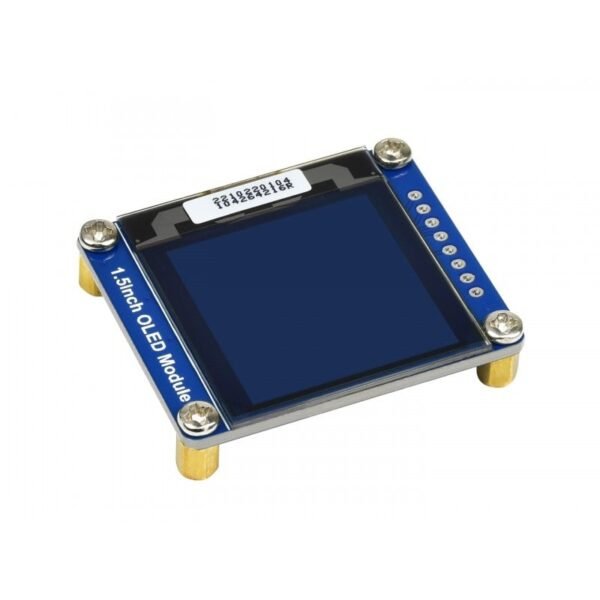

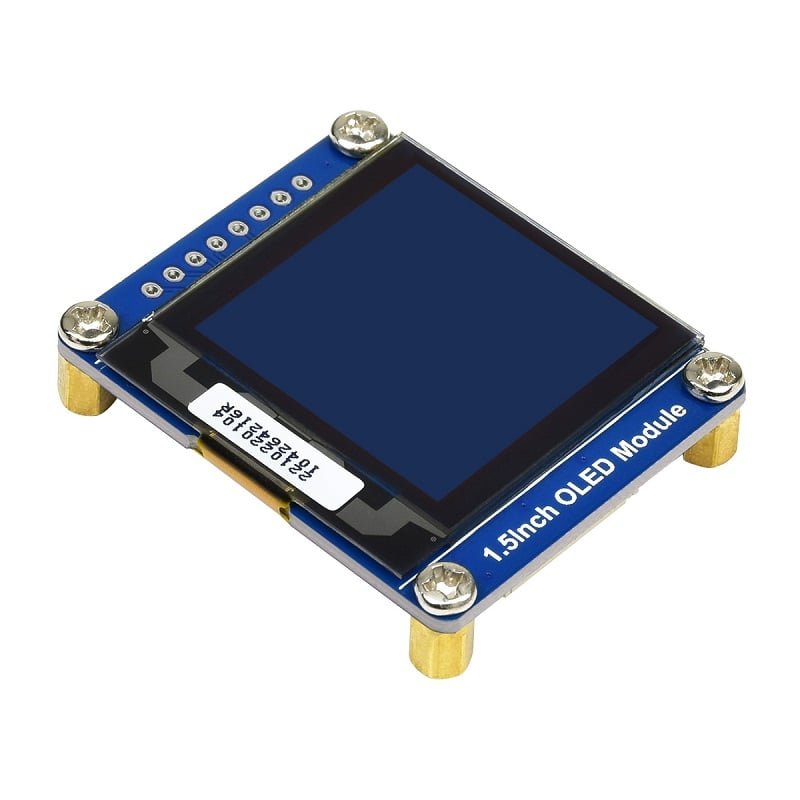

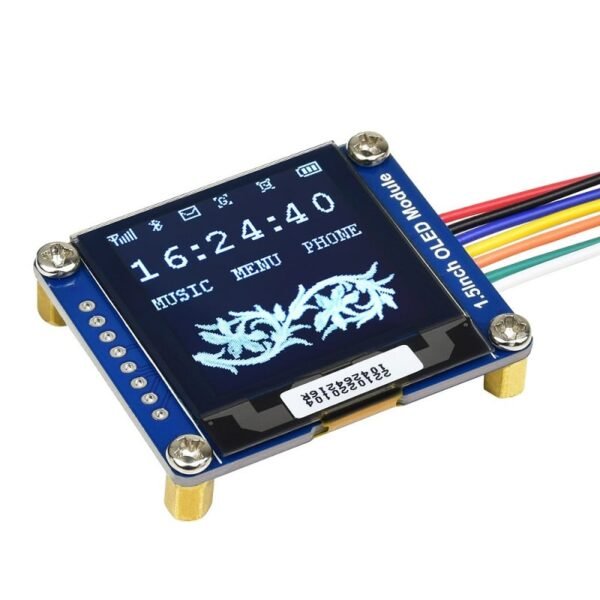

Waveshare 128×128, General 1.5inch OLED Display Module

Description

This is a general 1.5inch diagonal OLED display Module from Waveshare, 128×128 pixels monochrome dot matrix display module with 16 grayscales, and embedded controller communicating via SPI or I2C interface.

It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

Features:

1. 128×128 high resolution.
2. 16 grayscale, the better display effect.

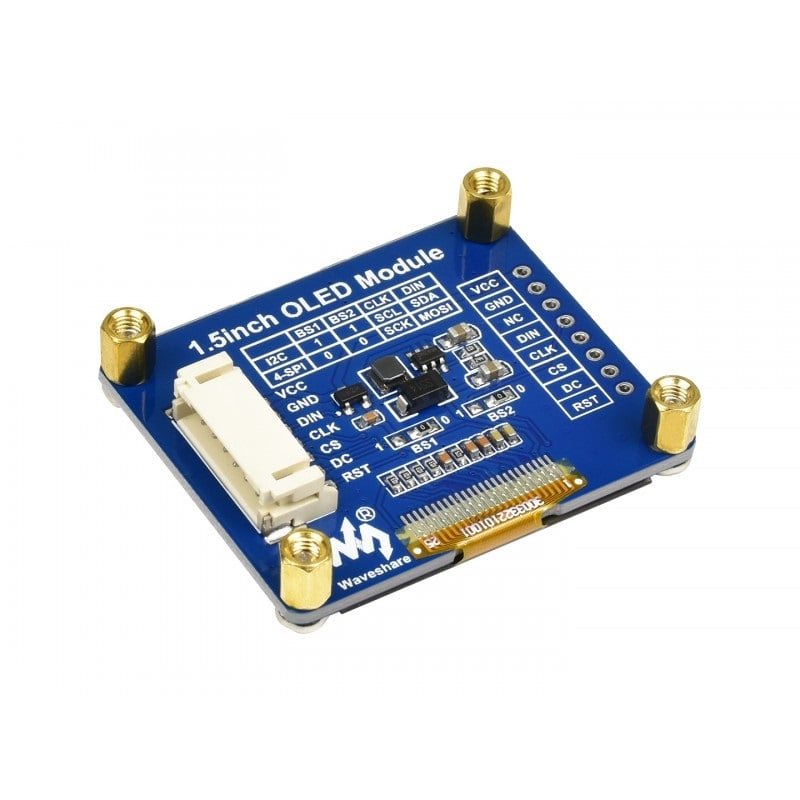

3. Supports SPI or I2C interface, configured via an onboard resistor.
4. Comes with development resources and a manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).

Package Includes:

1 x 1.5inch OLED Module

1 x PH2.0 7Pin
