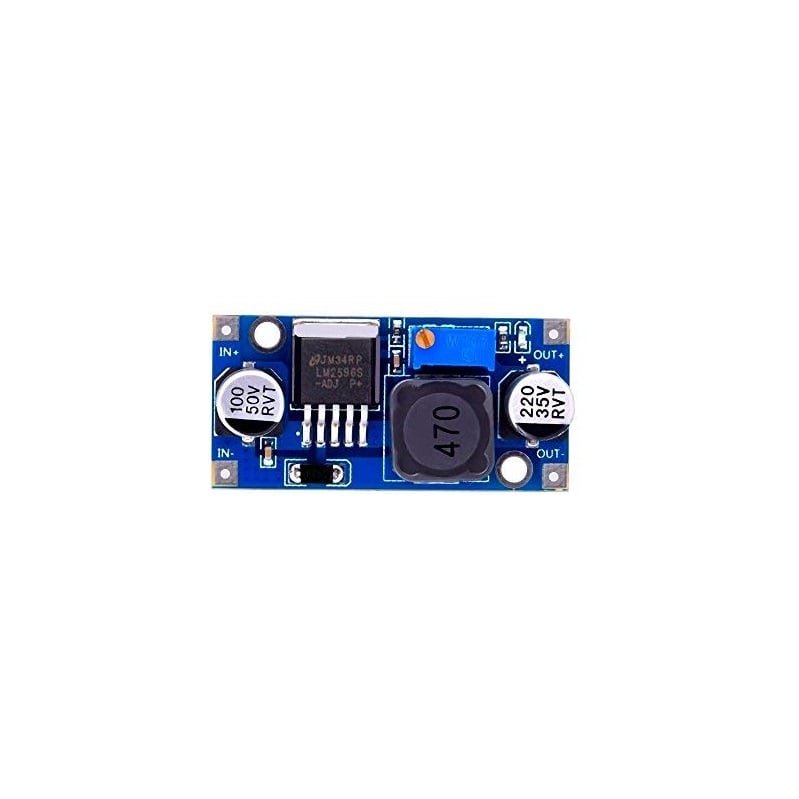

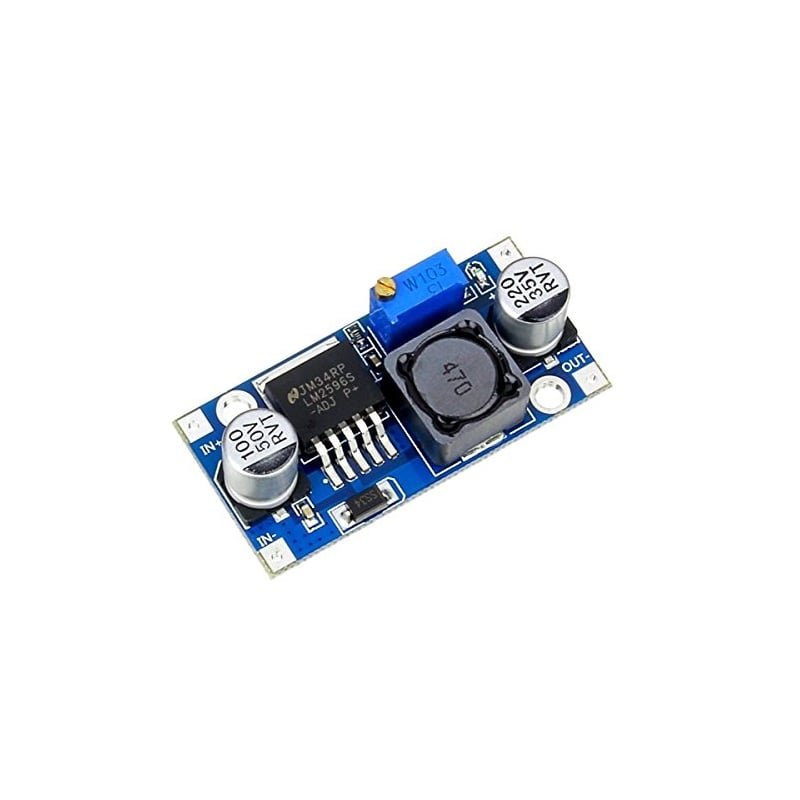

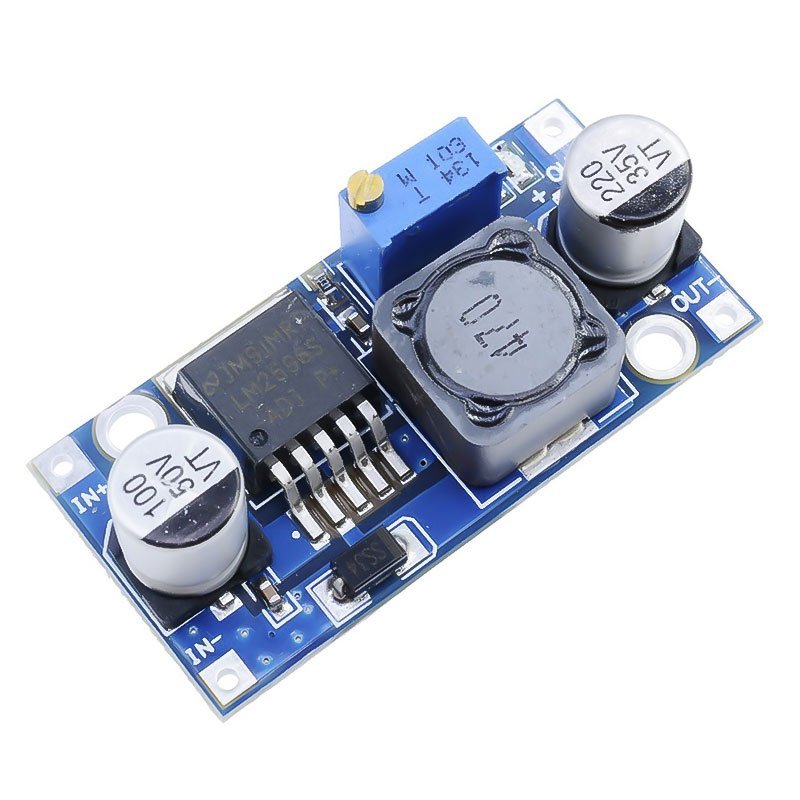

LM2596 HV DC-DC Buck Converter 4.5-40V to 3-35V Adjustable Step Down Module
LM2596 HV DC-DC Buck Converter 4.5-40V to 3-35V Adjustable Step Down Module - Image 2
LM2596 HV DC-DC Buck Converter 4.5-40V to 3-35V Adjustable Step Down Module - Image 3

LM2596 HV DC-DC Buck Converter 4.5-40V to 3-35V Adjustable Step Down Module

Original price was: ₹110.00.Current price is: ₹85.00.

  1. Input voltage: 4.5-40V,
  2. Output voltage: (3-35V) continuously adjustable (recommended load debugging).
  3. Minimum pressure: 1.5V
  4. Output current: rated current 2A, 3A maximum
  5. Output Power: 15W maximum

Out of stock

Add to wishlist
SKU: RK009496 Categories: , ,

Description

It is LM2596 HV DC-DC Buck Converter with voltage rating 4.5-40V to 3-35V. This step down power module is adjustable with a potentiometer.

Features:

  1. Adjustment method: first correct input power (between 4.5-50V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
  2. Input: IN+ input positive IN- input negative
  3. Output: OUT+ output positive OUT- output negative
  4. Static power consumption is only about 6mA.
  5. Connection: Welding, plus pin can be directly soldered after the PCB.
  6. Short circuit protection: current limiting, thermal protection, self-recovery.
  7. Non-isolated step-down (BUCK) switching regulator.
  8. Short circuit protection: Current limiting, self-recovery
  9. Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
  10. Non-synchronous rectification

Package Includes :

1 x LM2596 HV DC-DC Buck Converter 4.5-40V to 3-35V
