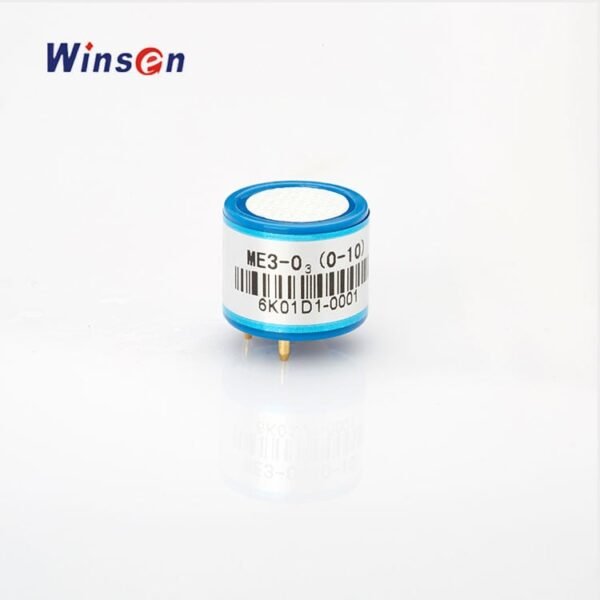

Winsen ME3-O3 Gas Sensor

Description

ME3-O3 electrochemical sensor detect gas concentration by measuring current based on the
electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the
working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the
target gas are in direct proportion with its concentration while following Faraday law, then concentration
of the gas could be get by measuring value of current

Winsen Electronics, manufacture and provide ozone/ O3 gas sensor, based on the electrochemical principle, industrial and environmental protection fields.
ME3-O3 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

Applications:

Widely used in industrial and environmental protection fields

Features:

1. Low consumption
2. High precision
3. High sensitivity
4. Wide linear range
5. Good anti-interference ability
6. Excellent repeatability and stability

Specifications:

1. Detection gas: O3
2. Measurement Range: 0～20ppm
3. Max detecting concentration: 100ppm
4. Sensitivity:（0.60±0.15）µA/ppm
5. Resolution ratio: 0.2ppm
6. Response time: (T90) ≤120S
7. Bias voltage: 0mV
8. Load resistance: 10Ω（recommended）
9. Repeatability: ＜5﹪output value
10. Stability（／month):＜2﹪
11. Output Linearity: linear
12. Zero drift（-20℃～40℃): 0.2ppm
13. Storage temperature: -20℃～50℃
14. Storage Humidity: 15﹪～90﹪RH
15. Pressure range: Standard atmosphere
16. pressure: ±10%
17. Anticipated using life: 2 years (In air）

Packages Includes:

1 x Winsen ME3-O3 Gas Sensor
