Description
The STS35 temperature sensor from Sensirion gives a fully calibrated, linearized, and supply-voltage-compensated digital output and has an outstanding accuracy of up to +/–0.1°C.
It provides an operating temperature range of -40~125℃ and up to 1MHz I2C communication rate. Besides, the sensor can heat up itself to dehumidify the chip, which means it can function properly in a certain level of humidity.

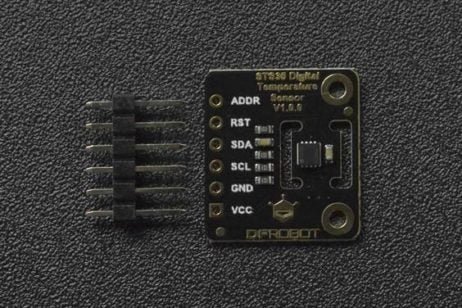

Pinout
Features:
- Factory-calibrated, accurate digital output
- High accuracy, ±0.1℃ temperature error
- Fast startup time, 0.5ms
- High reliability, long-term stability
Applications:
- Grain bin temperature monitoring
- Precise temperature controlling in Lab
- Ambient temperature detection in greenhouse
- Temperature measuring in the environment with changeable humidity
Specifications:
- Operating Voltage: 2.15～5.5V DC
- Heating Power Consumption: 3.6~33mW
- Output Signal: I2C
- Measuring Range: -40~125℃
- Accuracy: ±0.1℃
- Resolution: 0.01℃
- Preheat: ≤1.5ms (Typical, 0.5ms)
- Response Time: >2s
- Operating Temperature: -40～125℃
- Size: 20×17.5x2mm/0.79×0.69×0.08”
- Mounting Hole Size: M2(2mm); Pitch 15mm
Package Includes:
1 x DFRobot Fermion: STS35 High Accuracy Digital Temperature Sensor (Breakout)
