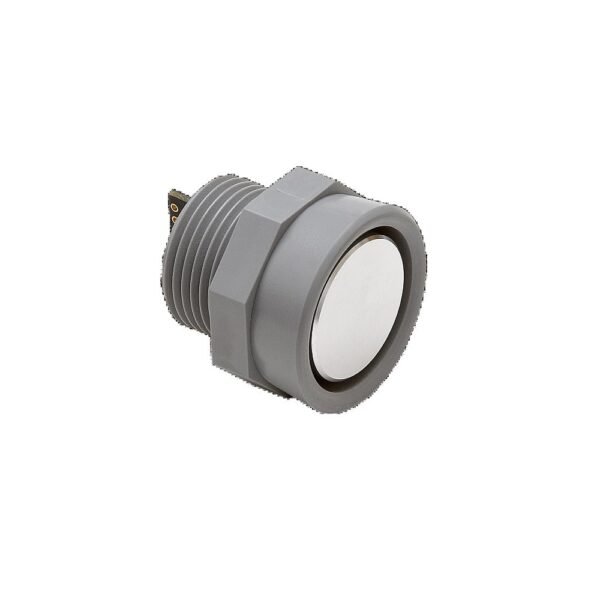

Maxbotix MB7375-200 HRXL MaxSonar WRB Ultrasonic Sensor

Description

The weather resistant HRXL-MaxSonar-WRB is a rugged, ultrasonic sensor component module. This outdoor sensor provides wide-angled detection and ranging out to five feet in a compact, robotools PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The HRXL-MaxSonar-WRB MB7375 ultrasonic sensor features a maximum range of 5 feet (1525mm). The MB7375 is our sensor with the widest detection zone.

High-output, acoustic power, combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The HRXL‑MaxSonar-WR sensors are factory calibrated.

Specifications and features:

• Resolution of 1-mm
• 6.33Hz read rate
• Internal temperature compensation
• 42kHz ultrasonic sensor measures distance to objects
• RoHS Compliant
• Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
• Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
• Operates from 2.7-5.5V
• Low 2.9mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Operational temperature -40°C to +65°C (-40°F to +149°F)
• Real-time automatic calibration (voltage, humidity, and ambient noise)
• Firmware filtering for excellent noise tolerance and clutter rejection
• Weather resistant (IP67), optional chemical resistant F-Option
• Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
• Short, wide detection zone
• RS232 Serial Output
• Maximum range of five feet (1525 mm)

Package Includes:

1 x Maxbotix MB7375-200 HRXL MaxSonar WRB Ultrasonic Sensor
