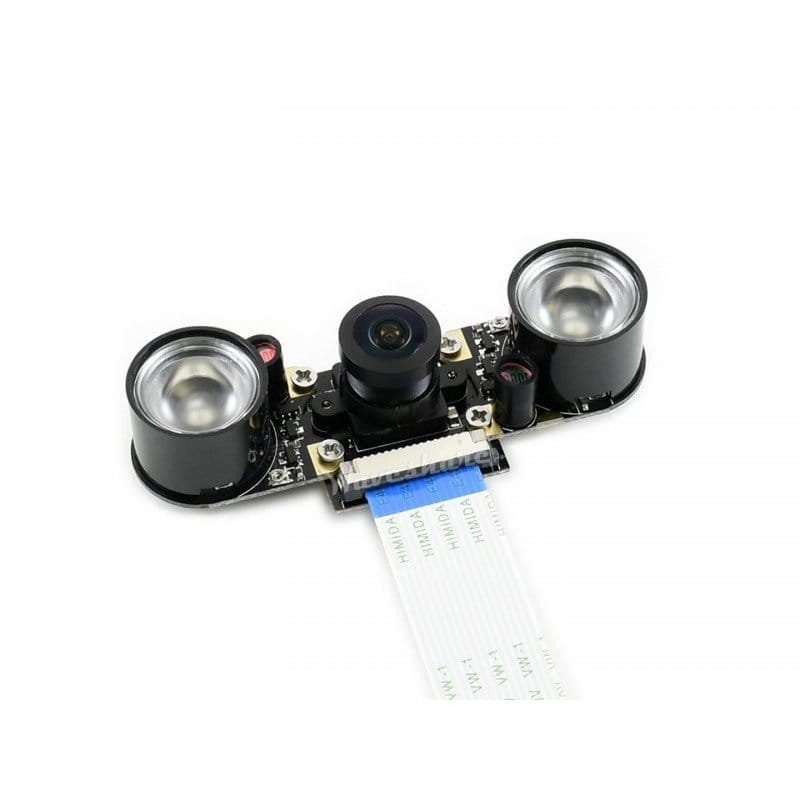

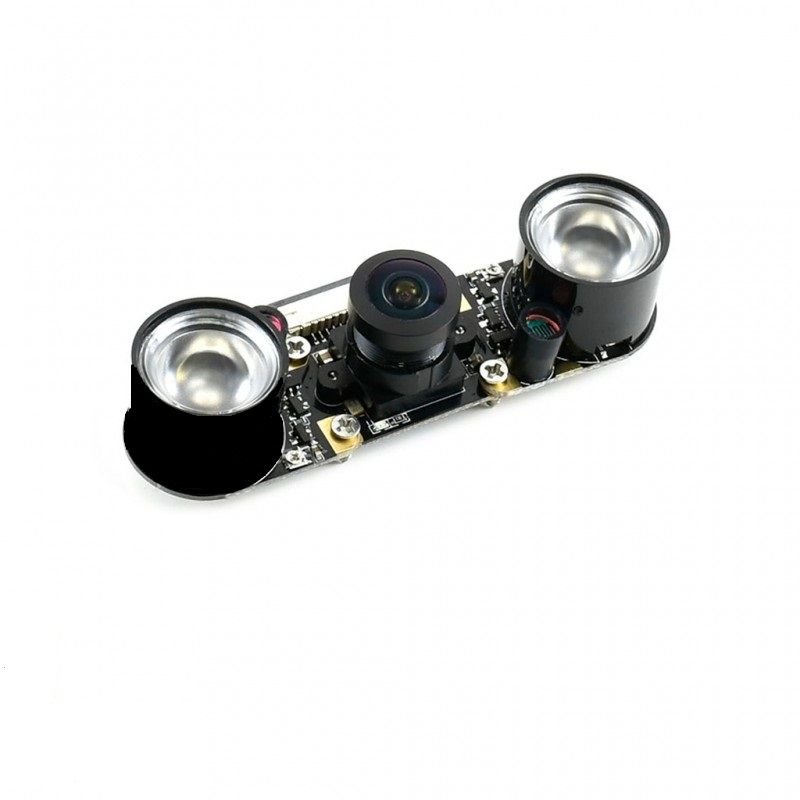

Waveshare IMX219-160IR Camera, 160° FOV, Infrared, Applicable for Jetson Nano

Description

IMX219-160IR Camera, Applicable For Jetson Nano, 8 Megapixels, Infrared Night Vision, 160° FOV.IMX219 Camera, 8 megapixels and 160 FOV. Compatible with Jetson nano, support night vision. You can also use it with CM3/CM3+ expansion boards like Raspberry Pi Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board of waveshare and the Stereo pie board.

Applications

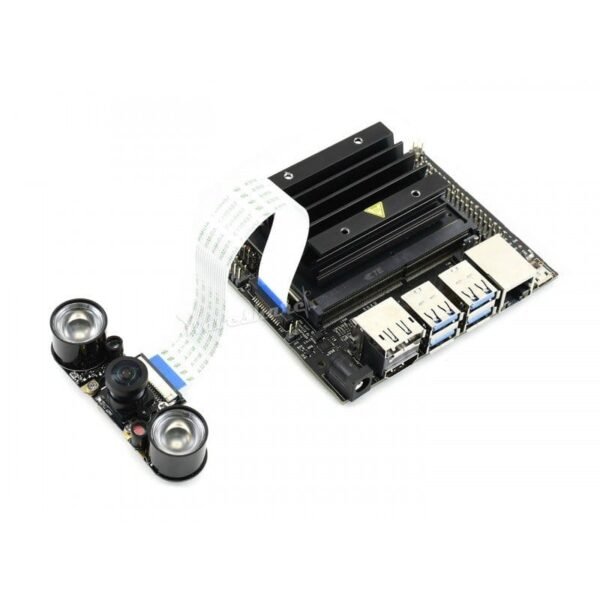

1. Combined with the Jetson Nano AI computer
2. Face recognition
3. Road mark detection
4. License plate recognition

---

Features

1. Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
2. Supports night vision when works with infrared LEDs
3. Supports connecting infrared LED and/or fill flash LED
4. 8 Megapixels

---

specification:

1. Sensor: IMX219
2. Resolution: 3280 × 2464
3. CMOS size: 1/4inch
4. Aperture (F): 2.35
5. Focal Length: 3.15mm
6. Angle of View (diagonal): 160 degree
7. Distortion: <14.3%
8. 4 screw holes: Used for attachment, Provides 3.3V power output

---

package include:

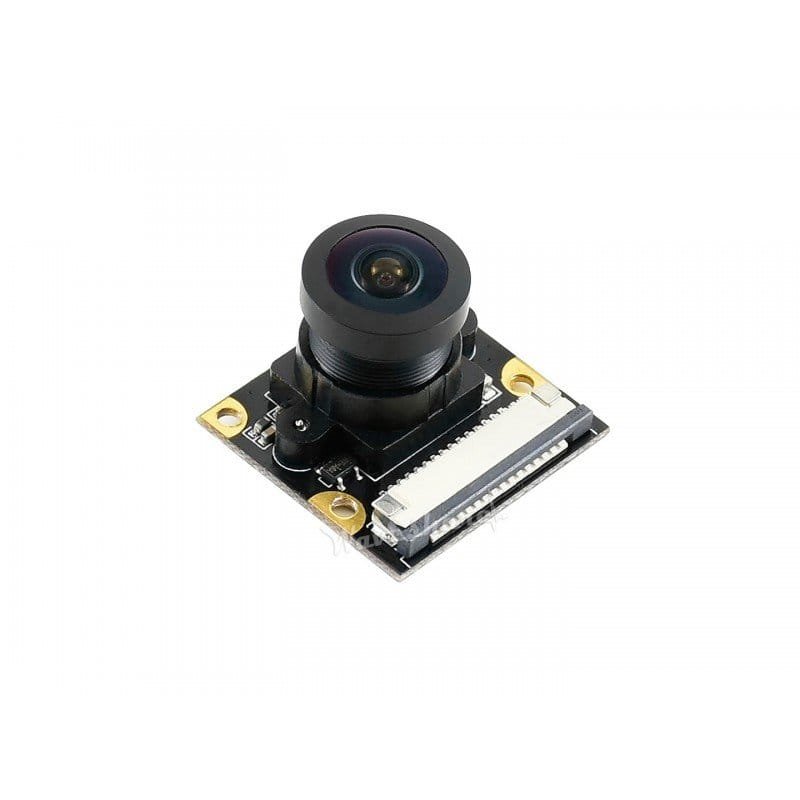

1 X IMX219-160IR Camera

1 X Infrared LED Board (B) 2PCS

1 X 15-pin FFC (opposite sides contact)
