Description
Linking Binding steps:
– After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time, disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the LED will start to flash double, and the receiver will enter the code matching mode.
– After the 2.4G ELRS tuner module and the remote control are correctly connected, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.
– After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.
Indicator status:
- Double flash: code matching mode
- Slow flashing: No transmission signal is received
- Steady on: receive the transmit signal
- Fast flashing: WIFI upgrade mode
Features:
- Small in size
- Easy to handle
- Easy to install
- Use in Helicopters
Specifications:
- Brand Name: JHEMCU
- Item Name: RX24T RC Receiver
- Model: RX24T
- Weight: 0.6g(without antenna)
- Size: 11 x 18 x 3 mm
- 2.4G ISM type
- ESP8285 MCU
- SX1280IMLTRT RF
- Frequency range: 2400 MHz To 2500 MHz
- Maximum receiving refresh rate: 500Hz
- Minimum receiving refresh rate: 25Hz
- Working voltage: 5V
- Peak gain: 3.16dB
- RX24T: Half-wave dipole omnidirectional T-shaped antenna

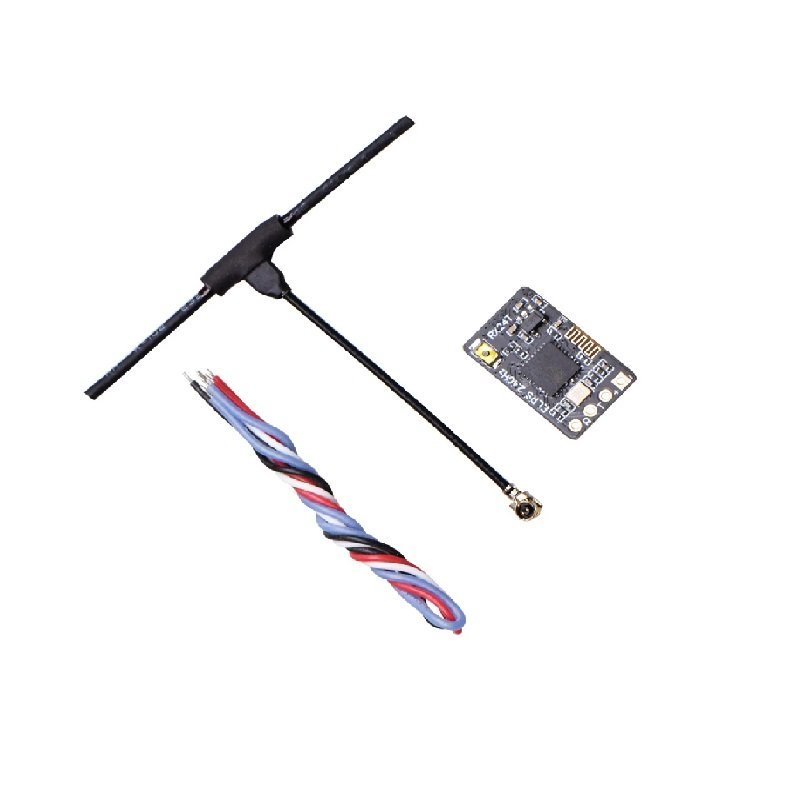

Packages Includes:
1 x RX24T RC Receiver
1 x T antenna
4 x Wire
