Emax BLHeli Series 12A ESC with Oneshot (Original)

Description

Emax BLHeli Series 12A ESC with Oneshot Based on BLHeli firmware further optimized to the perfect drive performance. It has Low-voltage protection, over-heat protection, and throttle signal loss protection.

The ESC comes with a Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference. The Parameter of this ESC can be set via a program card or transmitter. The throttle range can be set to be compatible with different receivers. Equipped with built-in linear BEC or switch BEC. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

How to do ESC Connection and Calibration Click here.

100% Guaranteed Original & Genuine Emax Product.

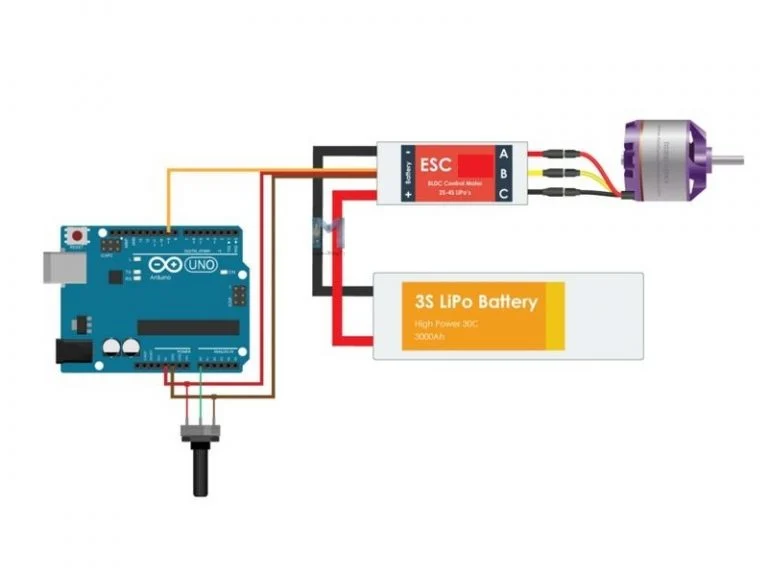

Connections:

Features:

1. Uses the authentic Electronic components to ensure high quality and enhance the current endurance ability of the ESC.
2. Based on BLHeli firmware, Optimized for high performance with great linearity and much quicker throttle response.
3. Specially designed for multi-rotors and compatible with fixed-wing aircraft and helicopters.
4. The rotational direction of the motor is Programmable i.e. Normal, reverse or bi-directional.
5. All parameters can be programmed via using a programming card or a transmitter
6. Multiple protection features including Low-voltage cut-off protection/ over-heat protection.
7. Alarm to help you find the device: keep the throttle on FULL OFF position for a while, the ESC will beep
8. Throttle range can be configured and fully compatible with all receivers, providing smooth; linear and precise throttle response.
9. One-Shot Available.

Package Includes:

1 x Emax BLHeli Series 12A ESC with Oneshot (Original).
