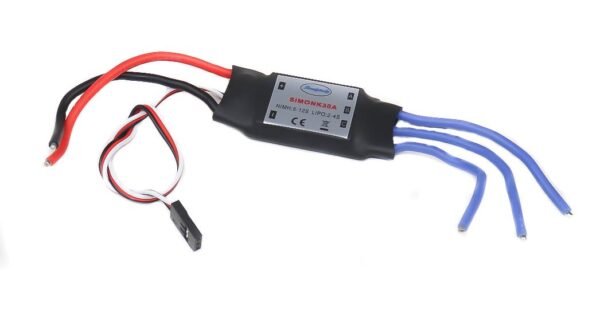

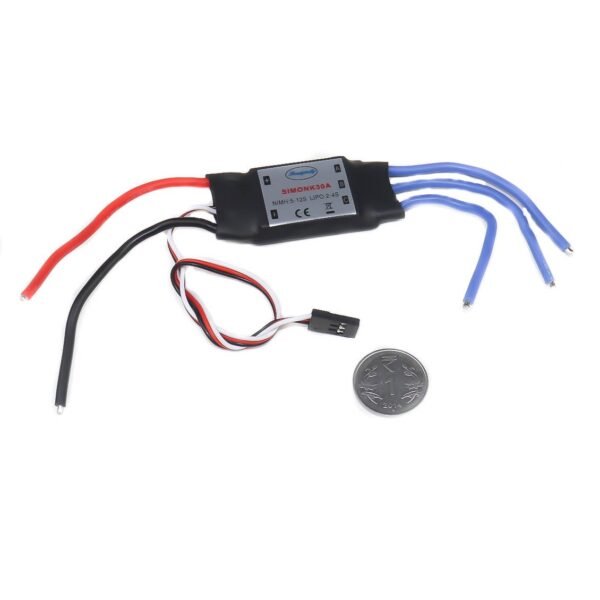

SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane – Good Quality


  1. Voltage range: 4 V-16.8V
  2. Current: 30A
  3. Burst current: 35 A
  4. BEC output: 5 V 3A
  5. Li-ion/Li-poly:2-4S,or Ni-MH/Ni-Cd:5-12S
SKU: RK005166 Categories: ,


If you are wondering to build a drone and don’t know what will be the best ESC for you then worry no more, we have got your back. At Robotools, we have everything for you to get started with your drone project.

Simonk 30A BLDC ESC Electronic Speed Controller can drive motors that consume current up to 30A. It works on 2-3S LiPo batteries. This electronic speed controller offers a battery eliminator circuit (BEC) that provides 5V and 3A to the receiver so we don’t need an extra receiver battery.

SimonK firmware is ESC (Electronic speed controller) specific firmware developed by Simon Kirby. This firmware has been found to have a faster response time than standard ESC firmware, as well as ease of use and compatibility, all of which improve multirotor performance.

This version of the ESC also includes backward-polarity protection and protection on the 5V receiver line, this means that if you accidentally attach a battery backward it won’t destroy your motor controller and other BEC won’t affect the ESC.

  1. 450 F650 X525 quadcopters.
  2. Various other Airplanes, High-speed RC Cars, etc.

For More 30A ESC’s, Click here



In case the BLDC ESC is connected directly to the remote control receiver; never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control; it may result in full throttle applied to the motor and it will rotate at full speed.

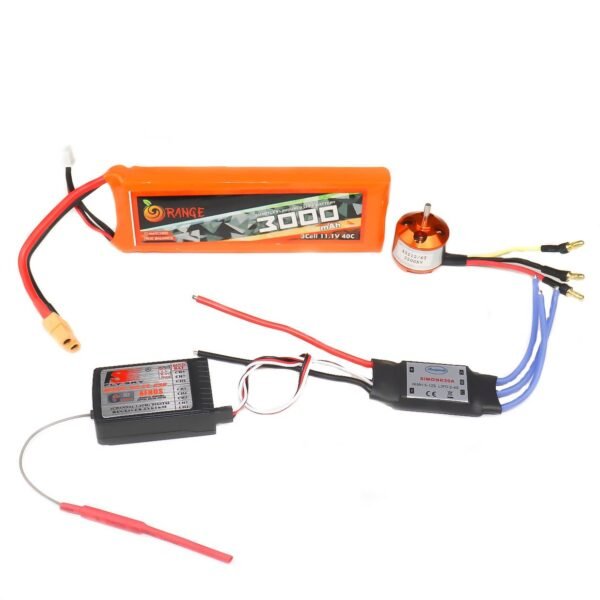

SimonK 30A Brushless Speed Controller ESC wiring (Other products not included in this package):


  1. Highest efficiency 100% N-FET design
  2. Highest accuracy with Crystal Oscillator (Temperature won’t affect the PWM operating range like other cheap ESC’s)
  3. No low voltage cutoff, because any cutoff in a multirotor = crash
  4. No over temp cut-off, because of any cutoff in a multirotor = crash
  5. Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate
  6. 16KHz motor frequency, giving the fastest response of the motor, and quietest operation as well (no 8KHz squeal)
  7. Super a simple, foolproof operation! Nothing to program other than the throttle range

Package Includes :

1 x SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane – Good Quality.
