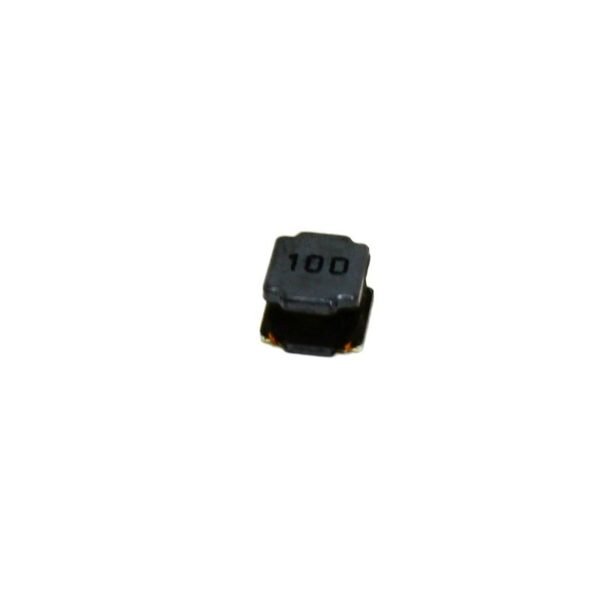

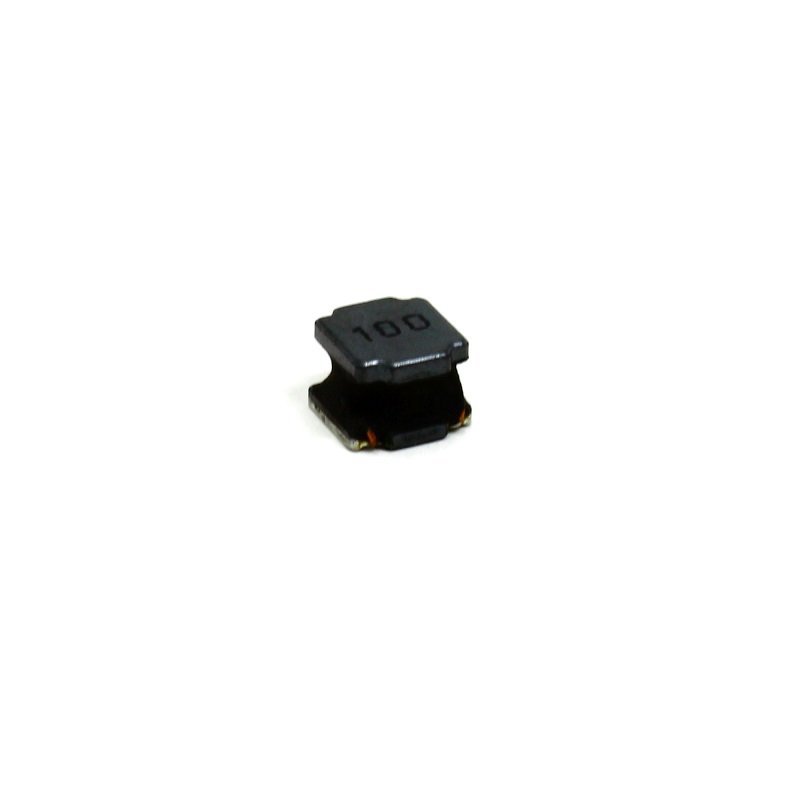

LPS6235-103MLC 10 µH 1.4A Coupled Inductor (6 x 6 x 3.5mm)


  1. Inductance: 10uH
  2. Tolerance: 20%
  3. Max DC Resistance: 0.07 Ohm
  4. Operating temperature (C): -40~125
  5. Max Rated Current: 1.4A
  6. Size: 6 x 6 x 3.5 mm
  7. Mount: Surface Mount


This is an LPS6235-103MLC 10 µH 1.4A Coupled Inductor. It is a Coupled Inductor with a low DCR and high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.


  1. Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
  2. Metallization on ferrite core results in excellent shock resistance and damage-free durability
  3. Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
  4. 30% higher current rating than conventional inductors of equal size
  5. Take up less PCB real estate and save more power

Package Includes:

1 x LPS6235-103MLC 10 µH 1.4A Coupled Inductor.
