F RG6 Connector Compression Type

Description

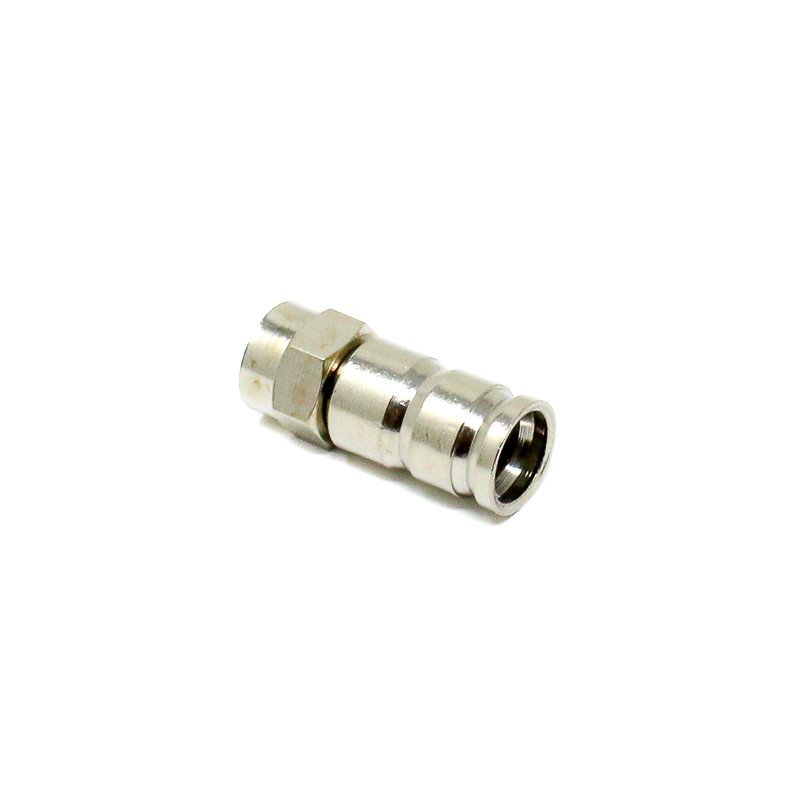

F RG6 Connector Compression Type

We at robu offers, a full range of cable mount BNC/TNC and diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors which suits your needs.

Appliance:

• Consumer Electronics: Satellite Boxes, set-top boxes
• Telecommunications: CATV, CATV Networks.

---

Features and Specifications:

Features:

1. F Connector,Straight/180°, Male Plug,Compression RG59 Cable,75ohm,Brass plating nickel
2. Compact Design for less installation space required;
3. Easy quick connect and disconnect coupling;

Specifications:

Electrical Characteristics

1. Impedance：75 ohm
2. Frequency Range: 0~3Ghz
3. VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
4. Withstanding Voltage: 500 V rms
5. Working Voltage: 170 V rms
6. Center Contact Resistance ≦ 10 mΩ
7. Outer Contact Resistance ≦ 5 mΩ
8. Insulation Resistance ≧ 1000 mΩ
9. RF Leakage -100dB min @1GHz

Mechanical Characteristics

1. Coupling: 3/8-32 thread
2. Cable Retention: 20 lbs min.
3. Durability(mating) ≧ 500 cycles

Environmental Characteristics

1. Temprature Range: -40°C ~ +60°C

Note: Refer Schematic Image for Dimensional Details

---

Package Includes:

1 x F RG6 Connector Compression Type
