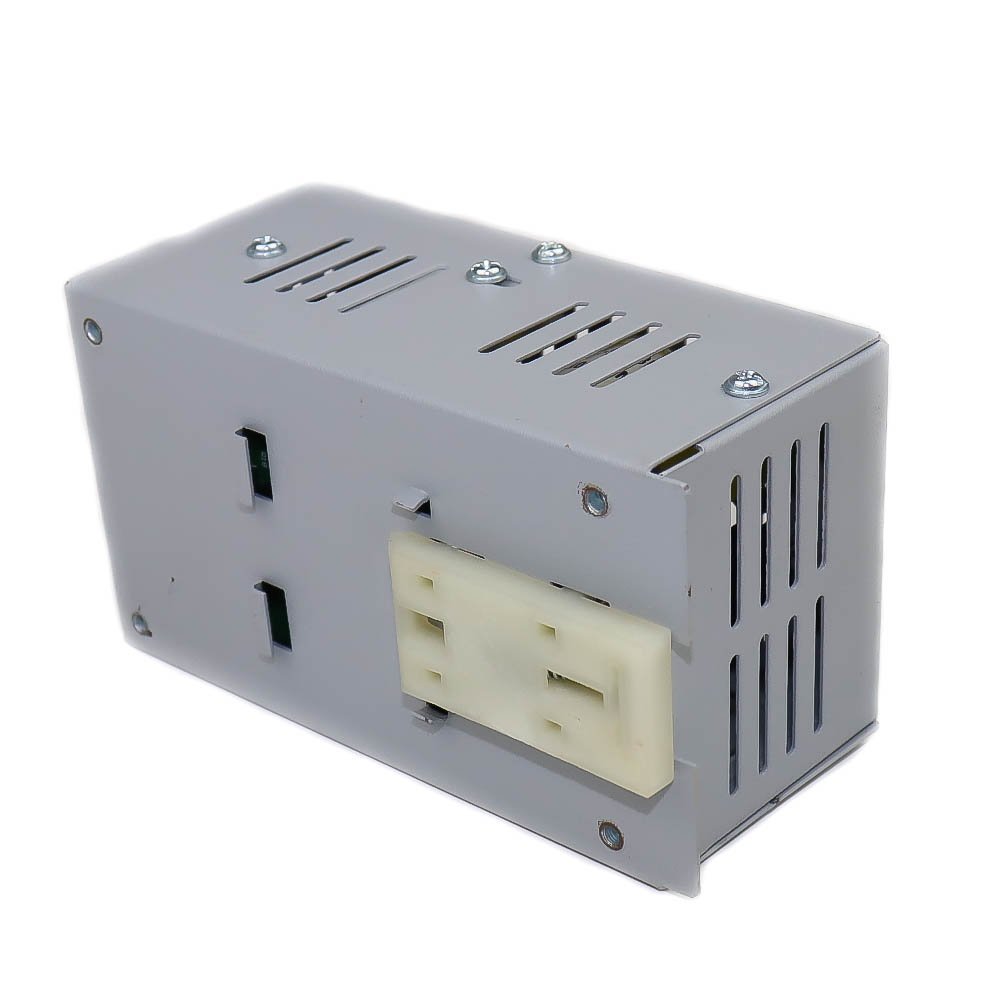

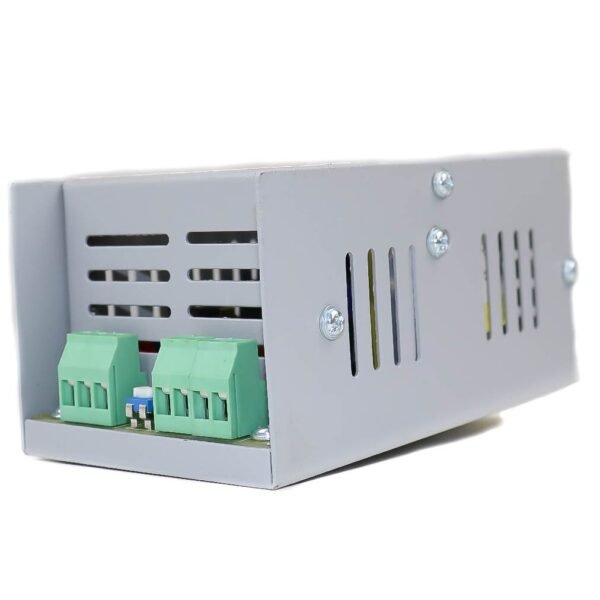

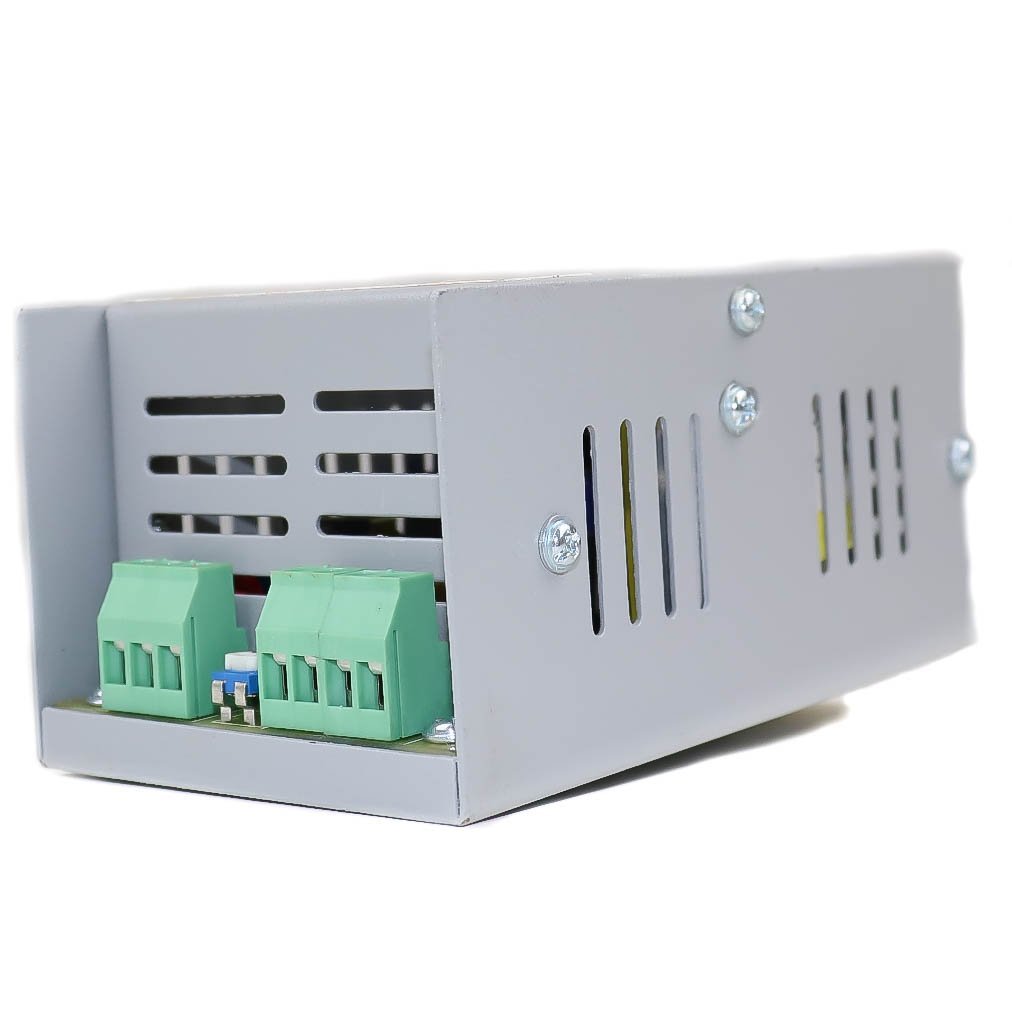

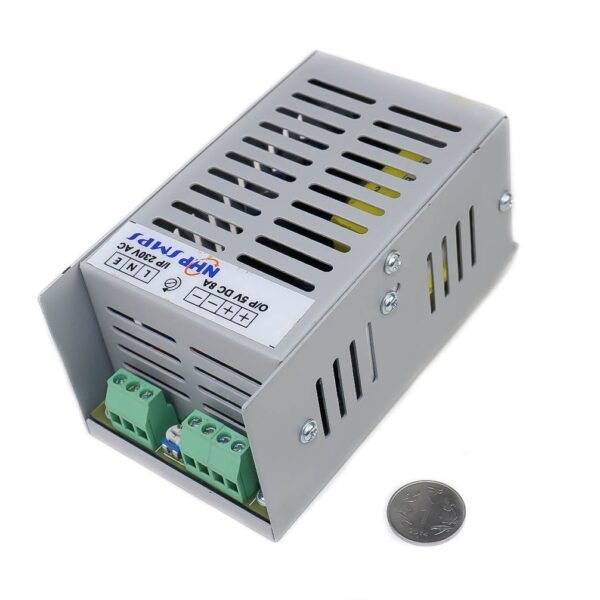

NHP 5V 8A 40W Switch Mode Power Supply (SMPS)

969.00

  1. AC Input Voltage: 170 ~ 270 V.
  2. Stable Output Voltage (V DC): 5.
  3. Output Current (Amp): 8.
  4. Output Power (Watt): 40.
  5. Line Regulation: 0.5% (FULL LOAD).
  6. Load Regulation: 1% (230 VAC I/P).
  7. Operating Temperature (°C): -20 ~ +70.

Description

Does your project need a little more power with constant DC voltage? we have a solution to your needs. NHP 5V 8A 40W Switch Mode Power Supply (SMPS) is a brand new power supply which we can mount using either rail mount or wall mounted vertically. These SMPS are achieved high efficiency and robust to use;  By using these latest SMPS, you can reduce your electricity bill.

This SMPS is an AC to DC type converter; so as we said it is converting 230 VAC to 5 VDC @ 8A. This SMPS will provide you constant output 5V 8A means we can drive applications that have maximum current rating up to 8A. It includes any type of motor with different RPM, thermoelectric Peltier, etc.

We have been testing this power supply for quite some time and can definitely clarify its durability with its metal casing, short circuit, overload, and overvoltage protection. It comes with a sufficient amount of heat dissipation case.

We have a variety of SMPS available on our site have a look Click here!


Features:

  1. High MTBF.
  2. Design as per international standards.
  3. It occupies very less panel footprint.
  4. Wall or Rail mountable.
  5. It can handle very high inrush currents without failure.
  6. All protection features are auto-recovery.
  7. Protection available for:
    1. Input under /over voltage.
    2. Output overload / short circuit   (cvcc type).
    3. Output overvoltage.
    4. Thermal overload/over temperature.

Package Include:

1 x NHP 5V 8A 40W Switch Mode Power Supply (SMPS).
