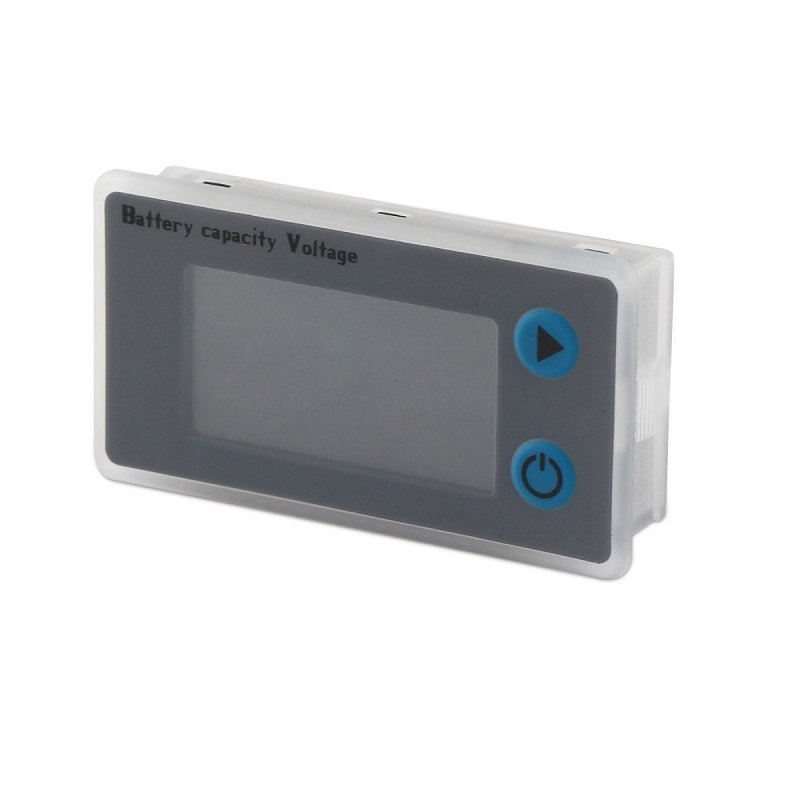

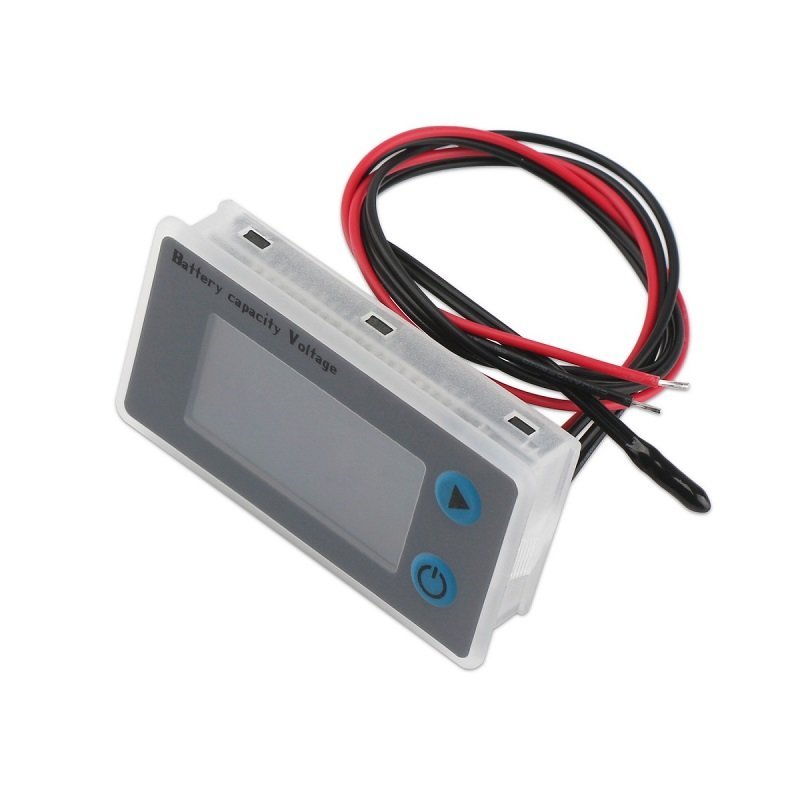

10-100V Universal LCD Car Battery Level, Capacity, Temperature Monitor

984.00

It is a Capacity/Temperature Monitor, Working voltage: 10V Min; 100V Max, Suitable for lead-acid, lithium battery, lithium iron phosphate, nickel-hydrogen, and other batteries. current: 4A, it used to LED Switching Power Supply.

This product is a general instrument, adopts an LCD color screen, can long-term display the battery, voltage, temperature (Selective assembly; sound-light alarm((Selective assembly) can be used in a variety of lighting conditions. The default parameters are suitable for lithium batteries, lead-acid batteries, lithium iron phosphate battery, Ni MH battery application field; through the development of programming, can be applied to any battery, simple wiring, convenient maintenance, and disassembly using a standard connector.


Features:

  1. The patented product adopted neutral packaging production, with a simple dustproof waterproof surface, with a full protection cover.
  2. The color liquid crystal material, clear display, display softly at night.
  3. To customize the type of battery, suitable for lead-acid, lithium-ion batteries, lithium iron phosphate, metal hydride battery, etc.
  4. To display the percentage of remaining battery power, voltage, temperature.
  5. The 10~100V wide input voltage, reverse protection.
  6. The product can go to sleep after 10 seconds.
  7. The red indicator flashes to alarm when it is low battery.
  8. The installation is simple, with a buckle, without screws.
  9. The buzzer alarm switch, alarm voltage setting (Selective assembly).
  10. The real-time detection of the battery temperature (Selective assembly).
  11. Open programming mode

Specifications:

  1. Working voltage: 10V Min; 100V Max
  2. Working consumption: 5mA Typical; 6mA Max
  3. Voltage accuracy:±0.1%Typical; ±0.5%
  4. Temperature accuracy:±0.5°cTypical; ±1°c Max
  5. Sleep consumption: 6uA Min; 10uA Typical; 12uA Max
  6. Buzzer voltage: adjustable 11.5V~100V
  7. Buzzer volume: 70db Min; 75db Typical; 80db Max
  8. Working temperature:-10°c Min; 25°c Typical; 55°c Max
  9. Product size: 61.5 x 33.5 x 13.5mm
  10. Installation size: 58.5*28.5mm
  11. Display size: 36 x 19.5mm

Package Includes:

1  x 10-100V Universal LCD Car Battery Level, Capacity, Temperature Indicator

Description

It is a Capacity/Temperature Monitor, Working voltage: 10V Min; 100V Max, Suitable for lead-acid, lithium battery, lithium iron phosphate, nickel-hydrogen, and other batteries. current: 4A, it used to LED Switching Power Supply.

This product is a general instrument, adopts an LCD color screen, can long-term display the battery, voltage, temperature (Selective assembly; sound-light alarm((Selective assembly) can be used in a variety of lighting conditions. The default parameters are suitable for lithium batteries, lead-acid batteries, lithium iron phosphate battery, Ni MH battery application field; through the development of programming, can be applied to any battery, simple wiring, convenient maintenance, and disassembly using a standard connector.


Features:

  1. The patented product adopted neutral packaging production, with a simple dustproof waterproof surface, with a full protection cover.
  2. The color liquid crystal material, clear display, display softly at night.
  3. To customize the type of battery, suitable for lead-acid, lithium-ion batteries, lithium iron phosphate, metal hydride battery, etc.
  4. To display the percentage of remaining battery power, voltage, temperature.
  5. The 10~100V wide input voltage, reverse protection.
  6. The product can go to sleep after 10 seconds.
  7. The red indicator flashes to alarm when it is low battery.
  8. The installation is simple, with a buckle, without screws.
  9. The buzzer alarm switch, alarm voltage setting (Selective assembly).
  10. The real-time detection of the battery temperature (Selective assembly).
  11. Open programming mode

Specifications:

  1. Working voltage: 10V Min; 100V Max
  2. Working consumption: 5mA Typical; 6mA Max
  3. Voltage accuracy:±0.1%Typical; ±0.5%
  4. Temperature accuracy:±0.5°cTypical; ±1°c Max
  5. Sleep consumption: 6uA Min; 10uA Typical; 12uA Max
  6. Buzzer voltage: adjustable 11.5V~100V
  7. Buzzer volume: 70db Min; 75db Typical; 80db Max
  8. Working temperature:-10°c Min; 25°c Typical; 55°c Max
  9. Product size: 61.5 x 33.5 x 13.5mm
  10. Installation size: 58.5*28.5mm
  11. Display size: 36 x 19.5mm

Package Includes:

1  x 10-100V Universal LCD Car Battery Level, Capacity, Temperature Indicator
