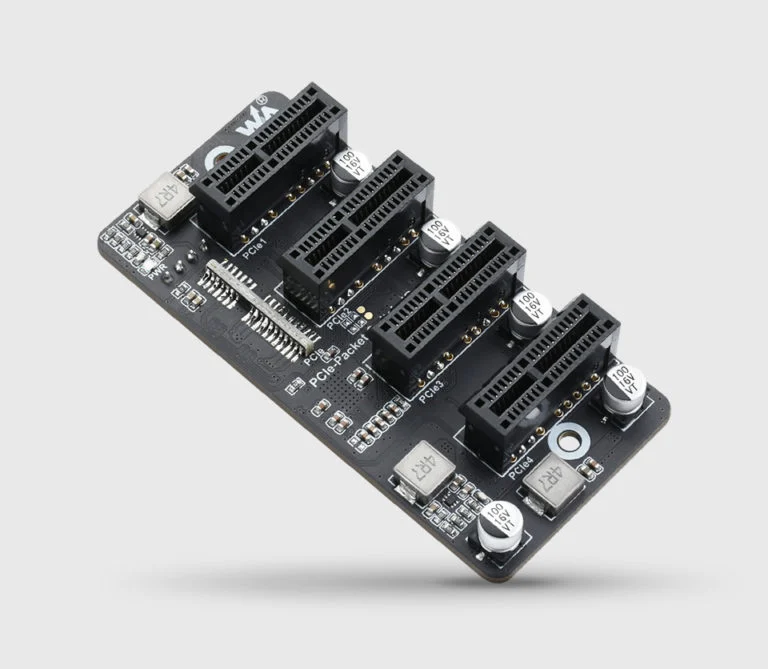

Waveshare Extended 4-Ch PCIe Gen 2 ×1 Expander, Stable Performance, Driver-Free

Description

The Waveshare’s Extended 4-Ch PCIe Gen 2×1 Expander is 4 channel expansion board for PCI Express devices. The module should be powered by a 12V power supply and when connecting to Compute Module 4 PoE 4G Board or the Compute Module 4 PoE 4G Board, no external power adapter is required. This adapter does not require a driver when using it except for the PCIe devices.

High-Performance Controller

Adopts ASMedia Controller, Supports PCIe 2.0 Full Speed Stable Data Transmission
Significantly Improved Performance Than Other Average Chips

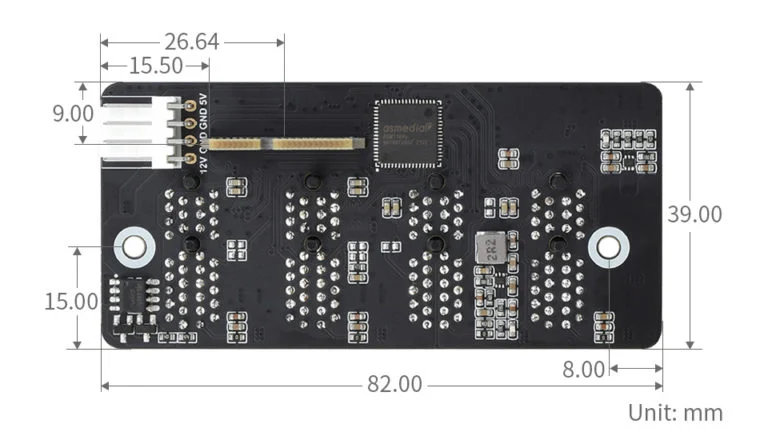

Outline Dimension

Features:

1. Extending 1-ch PCIe to 4-ch PCIe Gen 2 × 1 sockets, PCIe Gen 1 × 1 compatible
2. Flexible power supply options: powered from either PCIe 12V, OR from 12V DC header
3. Adopts ASM1184 controller, driver-free, plug and play
4. Not allow direct plugging onto PC mother board

Packages Includes:

1 x Waveshare Extended 4-Ch PCIe Gen 2 ×1 Expander, Stable Performance, Driver-Free
