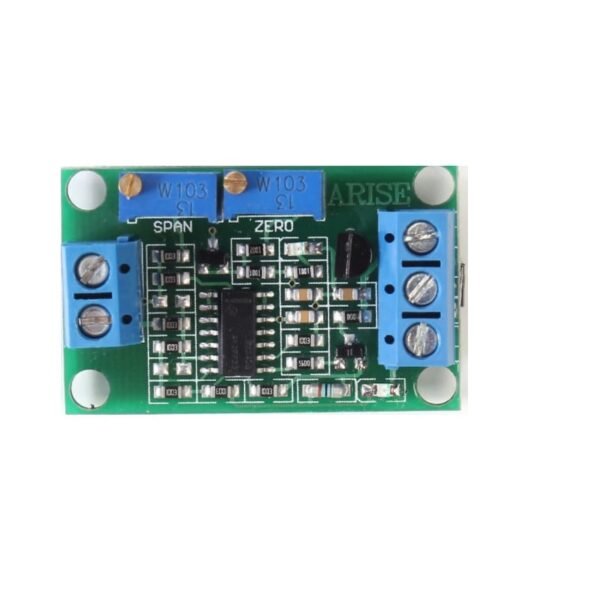

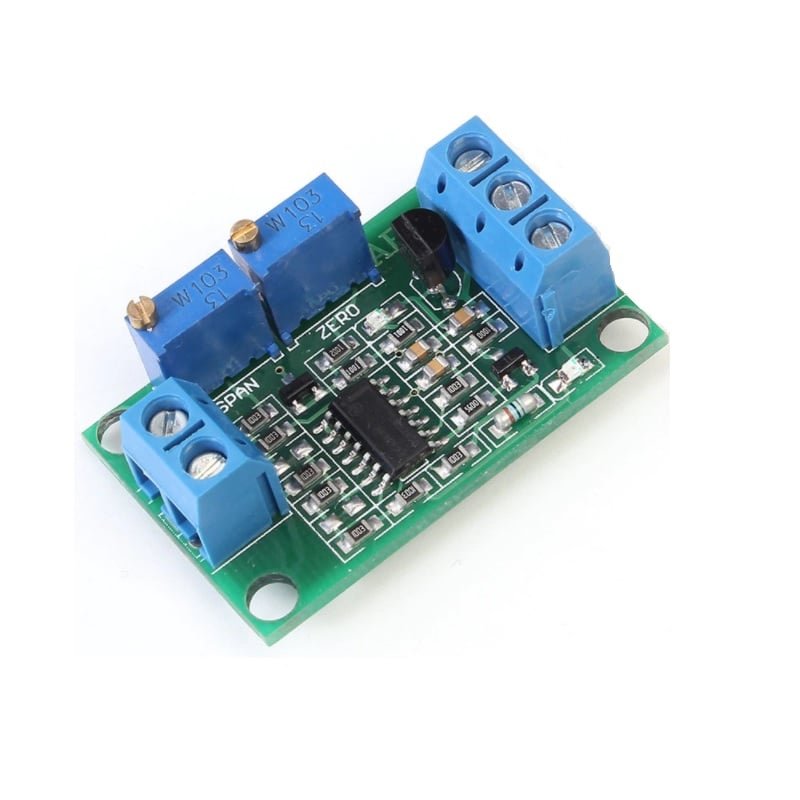

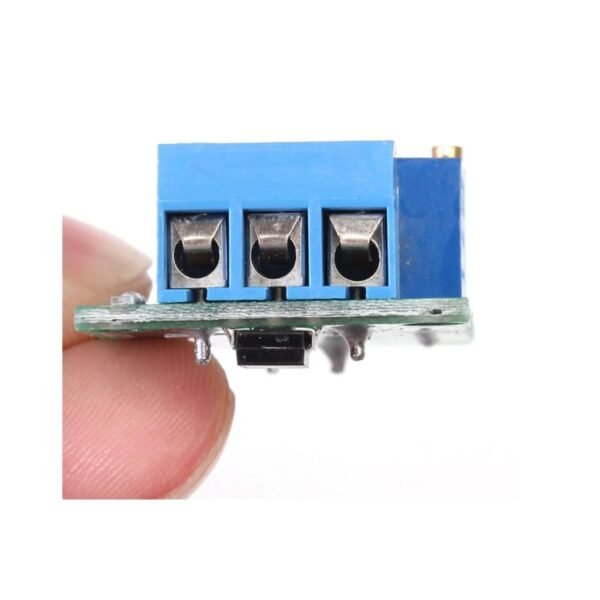

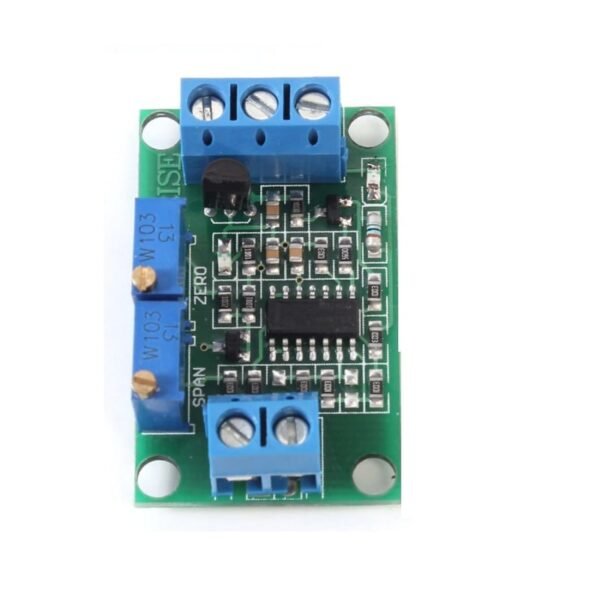

GOSLING 0-5V to 4-20MA Voltage-to-Current Module

Description

This is a  0-5V to 4-20MA Voltage-to-Current Module. The module is used to convert Voltage into Current.so, In the process of circuit signal transmission, the voltage signal will increase with the transmission distance becoming weak, the use of current transmission can avoid the signal weakening. This module is used for the end of the current signal transmission, the signal into a voltage signal for single-chip detection. Current Input support 4-20Ma, 0-20mA, voltage output support 0-3.3V 0-5V 0-10V.

Features and Specifications:

1. power supply: DC 7-30 V
2.  Input Voltage: 0-10V
3.  Output current: 4-20mA
4.  drifting temperature: +/- 100ppm / ℃
5.  Ambient temperature: -10 ℃ ~ 60 ℃
6.  Storage temperature: -20 ℃ ~ 85 ℃
7.  Relative Humidity: 10-90% RH
8.  air pressure: 86-106Kpa
9. Wide supply voltage range, the output has multiple voltage ranges
10. Zero and range can be adjusted
11. High stability, good linearity, industrial grade
12. Current signal sampling resistor with high precision color ring resistance, high precision, temperature drift small, high power

Package Includes:

1 x  0-5V to 4-20MA Voltage-to-Current Module
