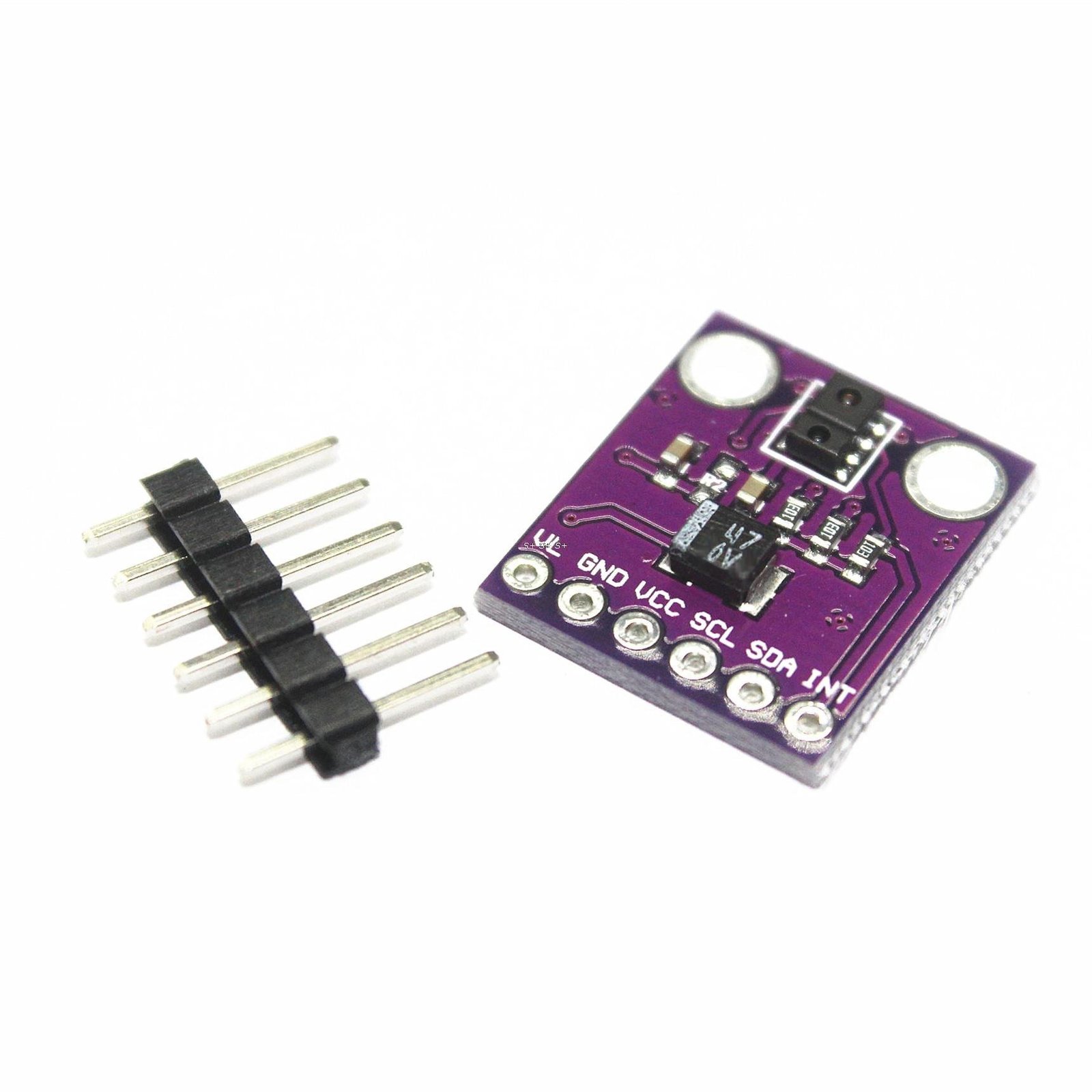

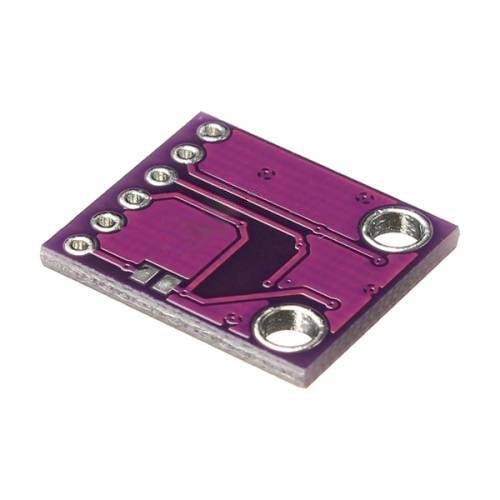

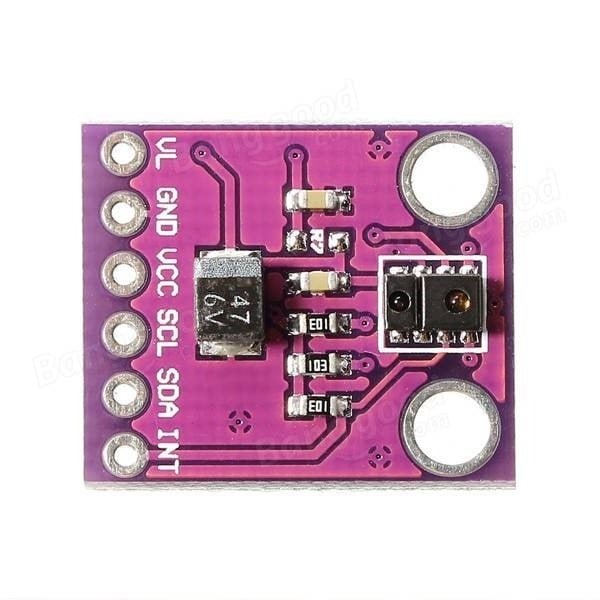

CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino

This is CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino. The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and play detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly.

The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone.

In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption. The ALS provides a photopic response to light intensity in very low light condition or behind a dark faceplate.

Note: The

Applications

Adjustable light mobile phone backlight
Notebook / display security
automatically enabled hands-free mode
Automatic menu pop up
Digital camera eye sensor.

Features :

1. Optical modules integrated with ALS, infrared LEDs and proximity detectors
2. Ambient Light Sensing (ALS)
   – Approximate human visual response
   – Programmable interrupt capability with upper and lower thresholds
   – Up to 16-bit resolution
   – High sensitivity operation behind dark glass
   – 0.01lux low lumen performance
3. Proximity detection
   – Fully calibrated to 100 mm detection
   – Integrated infrared LED and synchronous LED driver
   – Eliminates factory calibration of the proximity sensor
4. Programmable wait timer
   – Wait for state power consumption – 90μA typical
   – Programmable range from 2.7 ms to more than 8 seconds
5. I2C interface compatible
   – Up to 400kHz (I2C fast mode)
   – Dedicated interrupt pin.

Package Includes :

1 x CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor.

Useful Links

Arduino code and User Instructions.
