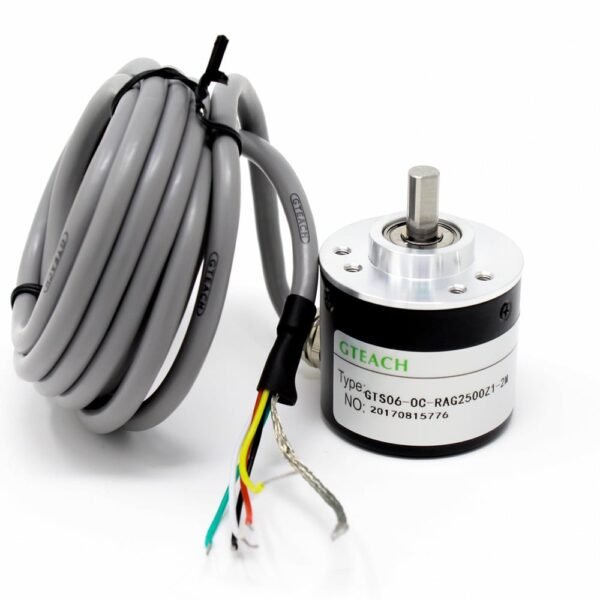

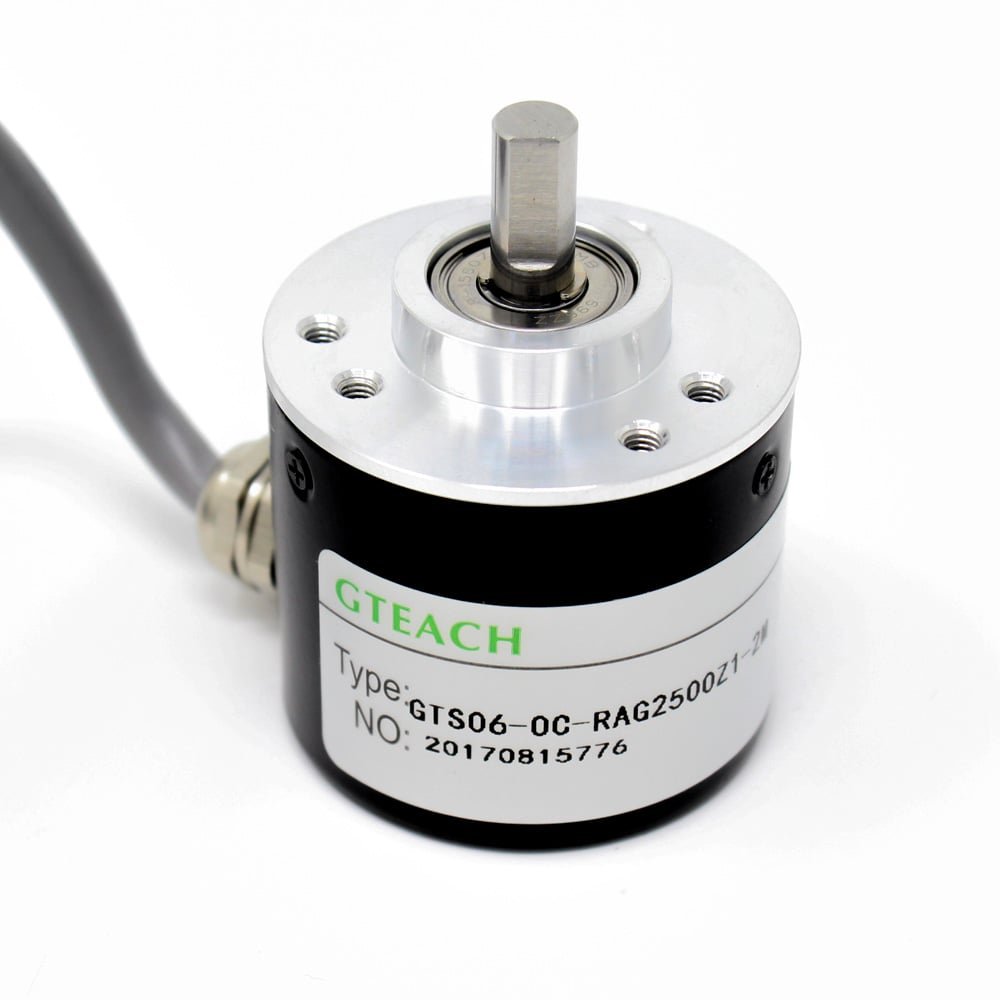

ZSP3806 2500 PPR Solid Shaft ABZ 3-Phase 5-24V Incremental Photoelectric Rotary Encoder

Description

ZSP3806 2500 PPR Solid Shaft ABZ 3-Phase 5-24V Incremental Photoelectric Rotary Encoder is robotools.in‘s new featured product which gives accurate position and angle. This product have 2500 PPR hence the accuracy gets improve.

In automation applications, Incremental Photoelectric Rotary Encoder ZSP3806 2500 PPR Solid Shaft are used as sensors for angle, position, speed, and acceleration. By using spindles, gear racks, measuring wheels or cable pulls, linear movements can also be monitor by a rotary encoder. Rotary encoders convert a mechanical rotation value into an electrical signal that can be processed by counters, tachometers, logic controllers and industrial PCs.

Incremental Photoelectric Rotary Encoder ZSP3806 2500 PPR Solid Shaft are sensors that generate digital signals in response to movement. Both shaft encoders, which respond to the rotation, and linear encoders, which respond to the motion in a line, are available.

Encoders are available with a choice of outputs. Incremental encoders generate a series of pulses as they move. These pulses can be used to measure speed or be fed to a counter to keep track of position. Absolute encoders generate multi-bit digital words that indicate actual position directly. Incremental Photoelectric Rotary Encoder ZSP3806 2500 PPR Solid Shaft can be used in a wide variety of applications. They act as feedback transducers for motor-speed control, as sensors for measuring, cutting and positioning, and as input for speed and rate controls.

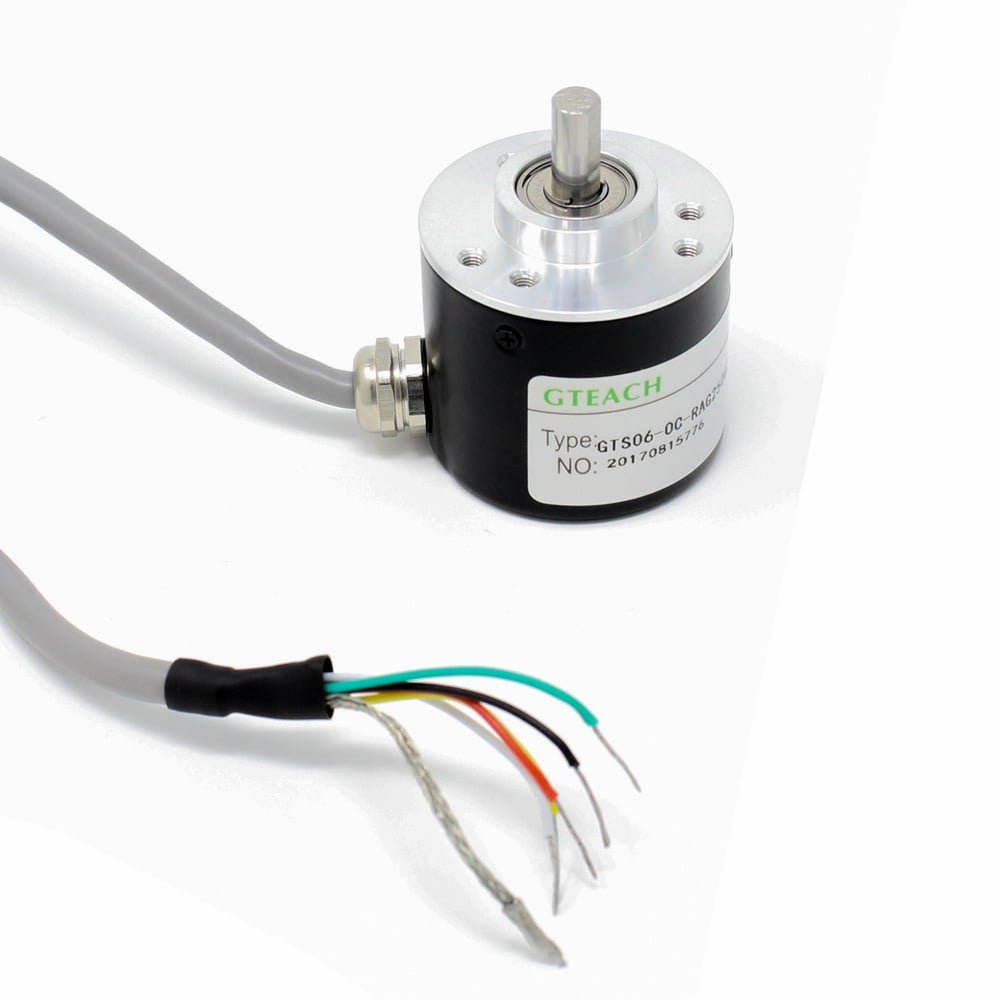

Wiring Information :

1. Red : VCC supply(5-24V).
2. Black : 0V.
3. Green : A.
4. White : B.
5. Yellow : Z.
6. silver : GND.

Applications :

1. Door control devices
2. Assembly machines
3. Robotics
4. Labeling machines
5. Lens grinding machines
6. x/y indication
7. Plotters
8. Analysis devices
9. Testing machines
10. Drilling machines
11. Ultrasonic welding
12. Mixing machines
13. Converting machinery
14. Medical equipment

Features :

1. High reliability, long life
2. Anti-jamming performance
3. Small size, lightweight, compact structure
4. Easy installation
5. High resolution, High quality, line interface with waterproof protection
6. Max Response Frequency : 100KHz-300KHz.
7. Shaft Loading : Axial = 10N , Radial = 20N.
8. Starting Torque : 1.5 mN.m.
9. Moment of Inertia : 3.5 x 10⁶Kgm³.
10. Operating Temperature: -25 ~ 105°C.
11. The output circuit NPN open collector output type.
12. CE, RoHS Authentication.
13. Can identify the direction of the count pulse signal generated by the rotation of the grating disc and optocoupler.

Package Includes :

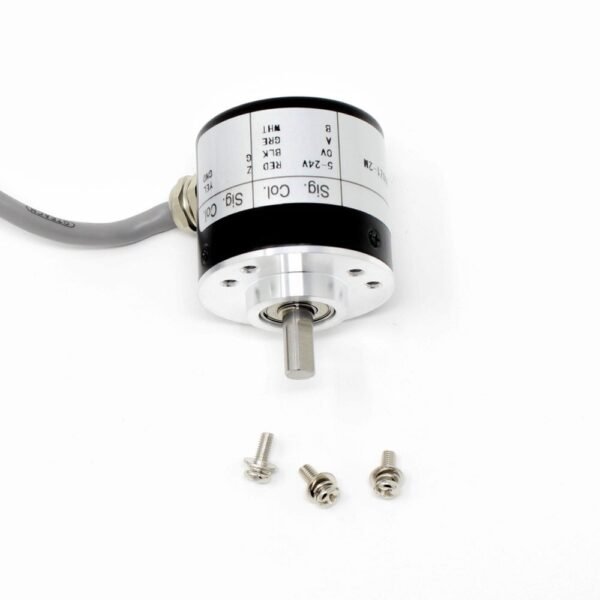

1 x ZSP3806 2500 PPR Solid Shaft ABZ 3-Phase 5-24V Incremental Photoelectric Rotary Encoder.

3 x M3 x 8 mm screws.

1 x User Manual.
