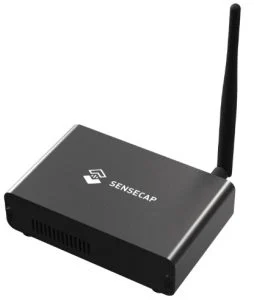

SenseCAP M1 LoRaWAN Indoor Gateway(4G RAM+SX1302) – EU868

Description

SenseCAP M1 is a high-performing, ready-to-use LoRaWAN indoor gateway compatible with Helium LongFi Network. SenseCAP M1 can connect to  The People’s Network within a few simple steps in minutes, and helps you build LoRa applications with low costs.

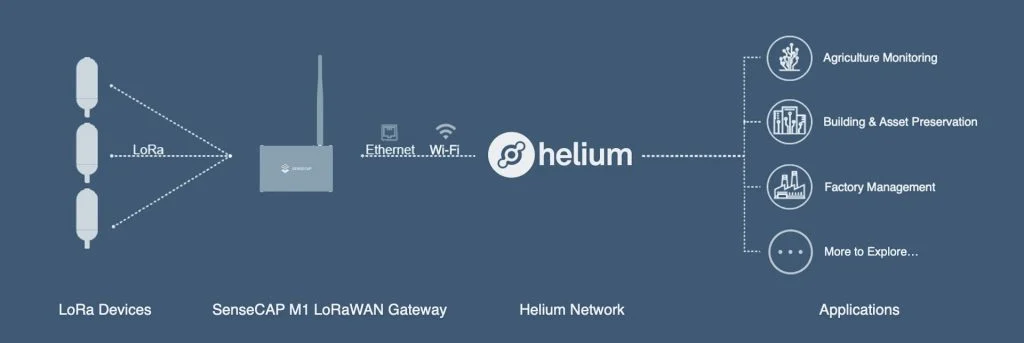

SenseCAP M1 provides miles of wireless network coverage and data transmission capacity for LoRa/LoRaWAN devices. It helps you join and contribute to the infrastructure of The People’s Network while enjoying the benefits from the Helium community.

Getting started with SenseCAP M1 LoRaWAN Indoor Gateway(4G RAM+SX1302) – EU868

---

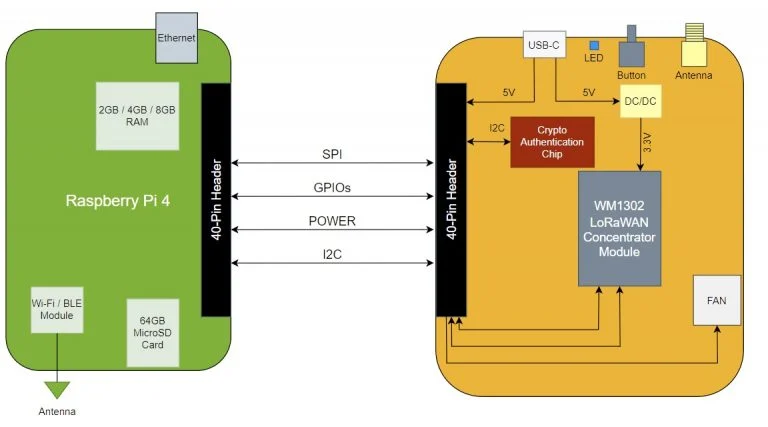

Block Diagram:

---

Features:

1. Powered by Mature Hardware Solutions. Raspberry Pi 4(4G RAM, 64G storage) and  WM1302 (Semtech SX1302) baseband LoRa chip.
2. Secure and Reliable. Built-in ECC608 crypto chip, high-security authentication, and reliable connectivity.
3. Handy Setup to Helium Network. Ready to go within simple steps.
4. Automatic Online Upgrades. Automatic OTA upgrades, without manual operation.
5. Remote Diagnosis. Built-in remote diagnostics mechanism, efficient online support.
6. 64GB Large Storage. 64GB MicroSD card large storage, extending the lifetime of the gateway, fulfilling the memory requirement of potential upgrade.
7. Efficient Cooling Solution. Aluminium enclosure with a heatsink and cooling fan inside, ensuring long-term and stable operation.
8. Multiple Accessories. Fibreglass antenna, slider pad for sliding rod installation, upcoming outdoor enclosure, etc.
9. FCC and CE Certificated. Available for personal and commercial use.

---

Specification:

1. Processor Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz)
2. RAM: 4GB
3. Storage: 64GB MicroSD Card
4. Frequency: US915 Version: 902MHz ~ 928MHz – For USA and Canada
5. Sensitivity: -125dBm @125KHz/SF7 -139dBm @125KHz/SF12
6. TX Power Up to 26 dBm
7. Antenna Gain US915: 2.6 dBi
8. Antenna Impedance 50 Ohm
9. Antenna Radiation Pattern Omni-Directional
10. Wi-Fi 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless
11. Bluetooth 5.0, BLE
12. LoRaWAN Supports Class A, C
13. Input Voltage DC 5V – 3A
14. Interfaces USB Type-C (Power Supply) * 1
15. Ethernet RJ45 * 1
16. RP-SMA Female Antenna Connector* 1
17. Operating Temperature 0°C to 50°C
18. Relative Humidity 0% – 90% (non-condensing)
19. Heat Dissipation Aluminum enclosure, a heatsink, and a cooling fan
20. IP Grade IP20
21. Certification FCC / CE

---

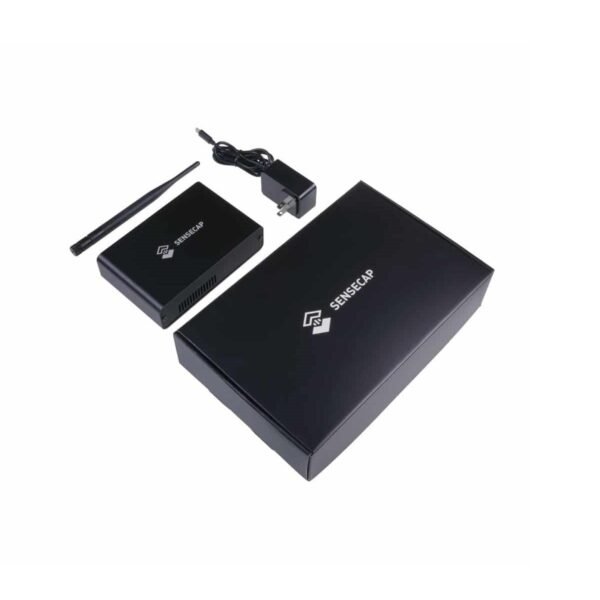

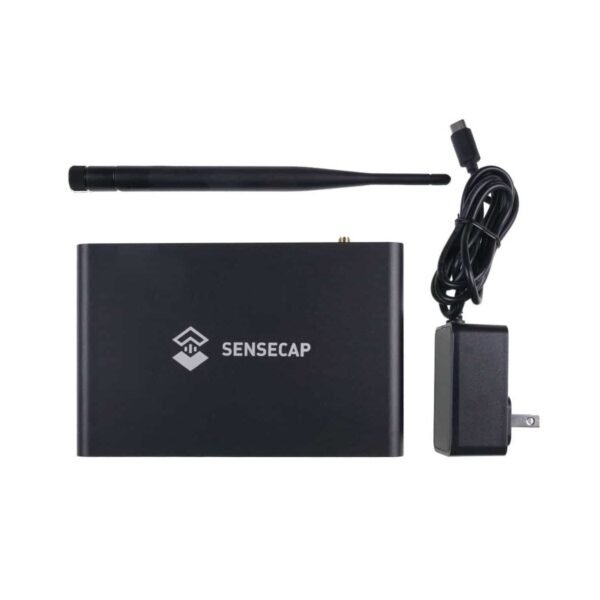

Package Includes:

1 x SenseCAP M1 LoRaWAN Indoor Gateway (EU868/US915)
1 x Power Adapter (EU/US)
1 x Antenna (EU868/US915)
1 x 64GB MicroSD Card
1 x Quick Start Guide;
